2CDGKRP-5.08-02P
10010012354

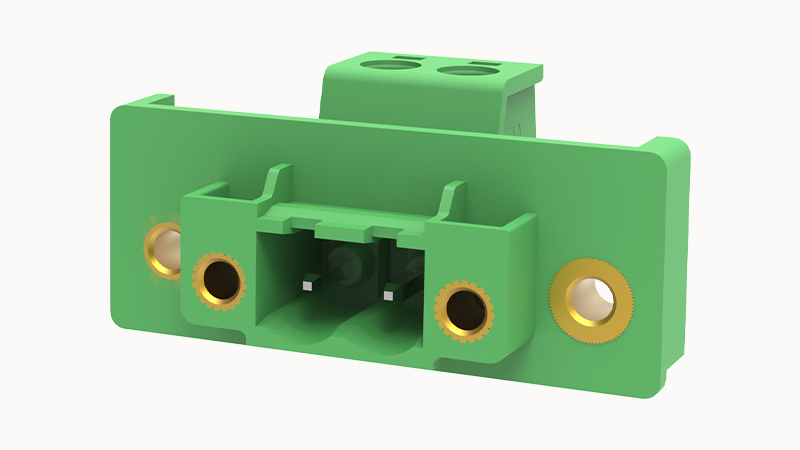

Pluggable terminal blocks,Rated current:12A.Rated voltage （III/2）:320V,pitch:5.08mm,Color:green,Contact surface :Tin
Color
Poles
- 02P
- 03P
- 04P
- 05P
- 06P
- 07P
- 08P
- 09P
- 10P
- 11P
- 12P
- 13P
- 14P
- 15P
- 16P
- 17P
- 18P
- 19P
- 20P
- 21P
- 22P
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product advantages
☑ Adapt to multi-type plugs, device design is highly flexible☑ Universal installation method, suitable for various situations
- 3D model
- Connection capacity
- Electrical parameters UL
- Electrical parameters IEC
- Item properties
- Material data
- Mechanical tests
- Environmental data
3D model
Connection capacity
| Conductor cross section solid | 0.2~2.5mm² |
| Conductor cross section flexible | 0.2~2.5mm² |
| AWG | 24~12AWG |
| Torque | 0.6N.m |
| Strip length | 8mm |
Electrical parameters UL
| Rated voltage (B) | 300V |
| Rated voltage (D) | 300V |
| Rated current (B) | 15A |
| Rated current (D) | 10A |
Electrical parameters IEC
| Rated voltage | 320V |
| Rated voltage(III/3) | 250V |
| Rated current | 12A |
| Rated voltage(III/2) | 320V |
| Rated voltage(II/2) | 630V |
| Rated surge voltage(III/2) | 4KV |
Item properties
| Connection direction | 0° |
| Pin arrangement | Single row in a straight line |
| Connection method | Screw connection |
| Screwdriver | Slotted screwdriver |
| screw thread | M3 |
| Pitch | 5.08mm |
| Number of potentials | 2 |
| Pluggable or not | Yes |
| Number of rows | 1 |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Contact material | copper |
| Contact point metal surface | tin-plated |
| Contact zone metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
Mechanical tests
| Test Specification | IEC61984/ UL1059 |
Environmental data
| Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
VDE parameters
| Overvoltage category/Degree of pollution | III/3 | III/2 | II/2 |
| Rated voltage | 250V | 320V | 630V |
| Rated current | 12A | 12A | 12A |
| Cross section | 0.2~2.5mm² | 0.2~2.5mm² | 0.2~2.5mm² |
UL parameters
| Use group | B | C | D |
| Rated voltage | 300V | / | 300V |
| Rated current | 15A | / | 10A |
| AWG | 24~12AWG | 24~12AWG | 24~12AWG |
| Order number | 10010012354 |
| Packing unit | 420 |
| Minimum order quantity | |
| Products weight (without packaging) | 7.431 |
Matching parts
- All supporting products（7）
- Related products（1）
