S-ESPP-08-OR-0193-BK-A00A
28010000839

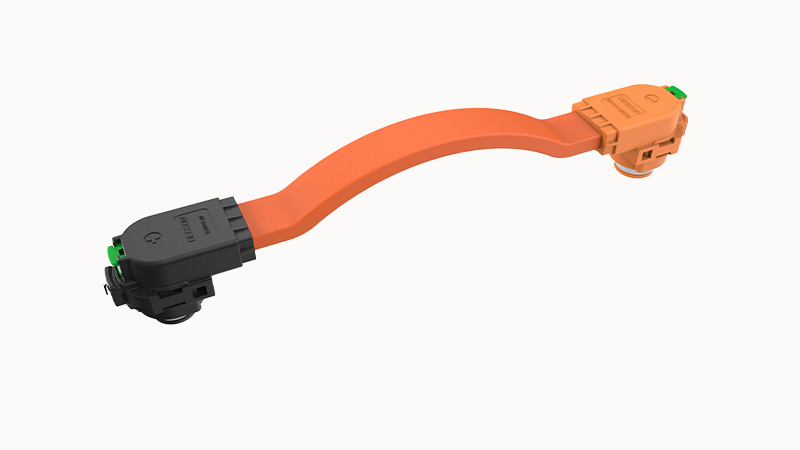

The 250A flexible copper busbar connector is designed for industrial, commercial, and large-scale containerized energy storage systems. It enables direct vertical connections, enhancing wiring efficiency in space-constrained or complex routing scenarios. The product meets TUV and UL certification standards and features an IP67 ingress protection rating.
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Suitable for applications with limited space and difficult wiring.☑ Cable length and routing are customizable.
☑ More efficient and aesthetically pleasing wiring.
☑ Compliant with TUV and UL certifications.
- 3D model
- IEC Electrical parameters
- Environmental conditions
- Electrical performance
- Mechanical properties
- General data
- Versions
- Electrical parameters UL
- Material data
- Electrical parameters
3D model
IEC Electrical parameters
| Pollution level | 3 |
Environmental conditions
| Operating ambient temperature (including temperature rise) | -40℃-125℃ |
| Maximum altitude | 5000m(Above sea level ) |
Electrical performance
| Flame retardant grade | UL94-V0 |
Mechanical properties
| Plugging times | 100 |
| Pullout force | >10N |
General data
| Protection level | IP67 |
Versions
| Female/Male | Female |
Electrical parameters UL
| Rated voltage | 1500V |
| Rated current | 250A |
Material data
| Sealing ring material | Silicone |
Electrical parameters
| Insulation resistance | >5000MΩ |
| Contact resistance | ≤0.5mΩ |
Electrical parameters
| Rated Voltage | 1500V DC | / | / |
| Rated Current | 250A | / | / |
| Order number | 28010000839 |
| Packing unit | / |
| Minimum order quantity | / |
| Products weight (without packaging) | 590 |
Matching parts
- All supporting products（1）
- Related products（0）
Filter by product parameters
ESS-250A-70-B/S-BK-00
Energy storage connector, product range: ESS socket, color: black, wire cross section: 70 mm², rated voltage: 1500V, rated current: 250 A, connection method: copper bar/threaded hole, contact type: hole type
