DDB80
11110000039

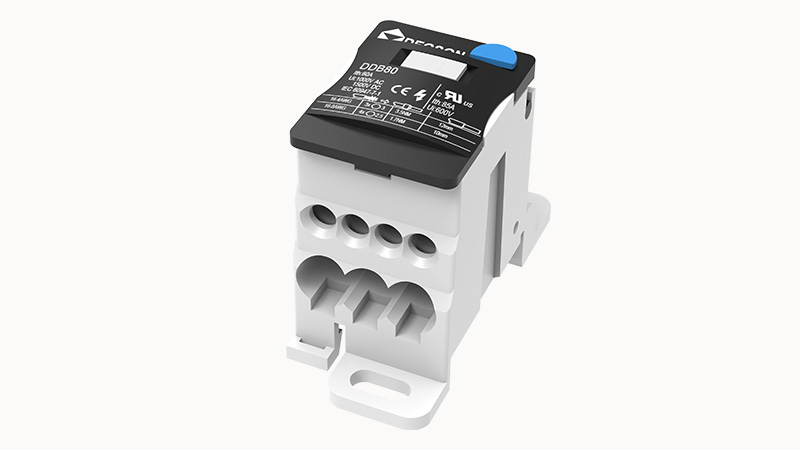

Screw-type connection, rated voltage: 1000V, rated current: 80A, connection quantity: 1, wiring capacity: incoming line (1.5 - 16) mm² outgoing line (1.5 - 6) mm², width: 30.5mm, color: gray, installation method: NS35/15
Color
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Compact design☑ Multiple potential distribution
☑ Easy installation"
- 3D model
- Overview
- Dimension
- Wiring data
- IEC Electrical parameters
- IEC Electrical parameters
- UL Electrical parameters
- Mechanical performance test
- Electrical performance test
- Safety test
- Environmental protection
3D model
Overview
| Number of rows | 1 |
| number of connections | 3 |
| Open-end side panels | Yes |
| Insulation Materials | PA |
| Flame retardant grade, in line with UL 94 | V0 |
| Insulating material group | I |
| standard test | IEC60947-7-1 |
| Connection method | screw connection |
Dimension
| width | 48.4mm |
| 29mm | |
| End plate width | / |
| length | 65.5mm |
Wiring data
| Conductor cross section solid | Power in:0.5mm²~10mm²,load:0.14mm²~4mm² |
IEC Electrical parameters
| Rated current (III / 3) | 80A |
IEC Electrical parameters
| Rated voltage (III / 3) | 1000V |
UL Electrical parameters
| Rated voltage | 600V |
| Rated current | 85A |
Mechanical performance test
| Mechanical strength | Passed the test |
| Fixing support | Passed the test |
| Rotational Pull Test | Passed the test |
Electrical performance test
| Voltage drop | ≤3.2mV |
| Temperature rise test | ≤45 K |
Safety test
| Anti-finger touch | Passed the test |
Environmental protection
| RoHS | No excessive harmful substances |
| REACh SVHC | Lead 7439-92-1 |
