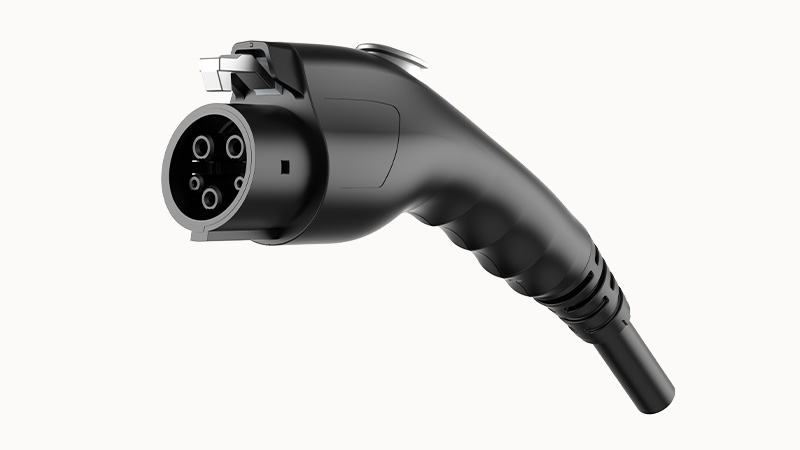

MAAC-S-040A-V1-03-5.0M-86A(H)
22030000246
Vehicle plug, Complying with SAE J1772, it is suitable for home and commercial Mode 2 and Mode3AC charging,andcanprovide customizedservices for customers
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Metal locking hook, ensure charging safety☑ High-strength thermoplastic material, flame retardant grade is UL94 V-0
☑ Reliability materials, which can withstand 1 meter dropping and 2 tons of car rolling
☑ The product is fully insulated, comfortable to grip, and safe and reliable
- 3D model
- Dimension
- Environmental conditions
- Electrical characteristics
- Mechanical properties
- Environmental Product Compliance
- Material
- Cable
3D model
Dimension
| Vehicle connector height | 101mm(Vehicle charging connector) |
| Vehicle connector width | 54.5mm(Vehicle charging connector) |
| Cable length | 5000±100mm |
Environmental conditions
| Ambient temperature (operation) | -40℃~50℃ |
| IP class | Type 3R |
Electrical characteristics
| Rated current of high-power contacts | 40A |
| Power contact rated voltage | 240 |
Mechanical properties
| Insertion/pullout cycle | 10000 |
| Insertion force | < 75N |
| Pull out force | < 75N |
Environmental Product Compliance
| REACH | conform |
| China RoHS | conform |
Material
| Flammability rating ,in line with UL94 | V0 |
Cable
| Certification | UL |
| Outer sheath, material | TPE |
UL parameters
| Rated voltage | 240V | ||
| Rated current | 40A |
| Order number | 22030000246 |
| Packing unit | 5PCS/BOX |
| Minimum order quantity | 5 |
| Products weight (without packaging) |
| Data | |
|---|---|
| MAAC-S-040A-V1-03-5.0M-86A(H).pdf | Download |
