Product certification
Product advantages
☑ Integrating the management control box into the gun body significantly reduces the overall volume and makes the structure more concise and beautiful☑ Adopting a stable circuit design,the operating voltage is wide,and it has good adaptability and anti-interference ability
☑ Support different communication and charging scenarios, and provide customized services for customers
☑ Easy to operate, no need for complex operating procedures
- 3D model
- Dimension
- UL Electrical parameters
- Environmental conditions
- Environmental
- Cable
- Environmental parameters
- Electrical characteristics
- Mechanical properties
- Marking material
- Environmental Product Compliance
- Cable

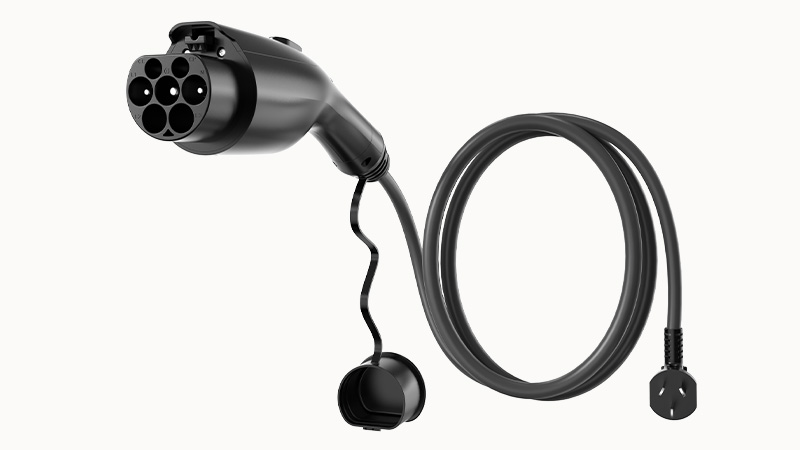

3D model
Dimension
| Vehicle connector height | 70.1mm(Vehicle charging connector) |
| Vehicle connector width | 64.5mm(Vehicle charging connector) |
| Vehicle connector depth | 268.6mm(Vehicle charging connector) |
| Cable length | 5000±100mm |
| Strip length | 100±10mm |
UL Electrical parameters
| Rated current | 10A |
Environmental conditions
| Ambient temperature (operation) | -30 °C ~ 50 °C |
| -40 °C ~ 85 °C |
Environmental
| Operating altitude | ≤ 2000m |
Cable
| Certification | CCC |
| Cable composition | 3*1.5 |
| Cable outer diameter | Φ8.5mm±0.5mm |
| Minimum bend radius | 51mm |
Environmental parameters
| Protection level | IP67 |
Electrical characteristics
| Power contact rated voltage | 165V～250V AC |
| Maximum charge power | 2.2KW |
| 3.5KW | |
| Phase | 1 |
| Power pin quantity | 3 |
| Quantity of signal contacts | 2 |
| Signal contact rated current | 2 |
| Signal contact rated voltage | 30 |
| Resistance coding | 480Ω |
| Signal transmission type | Pulse width adjustment |
Mechanical properties
| Insertion/pullout cycle | 10000 |
| Insertion force | < 100N |
| Pull out force | < 100N |
Marking material
| Connection material | Copper |
| Shell color | black |
| Actuation component color | Silver |
| Cover color | black |
| Customization basis | Provided according to customer requirements |
| Shell material | Plastic |
| Handle material area | Plastic |
| Protective cover material | Soft plastic |
| Flammability rating | V0 |
| Contact surface material | Ag |
Environmental Product Compliance
| REACH | conform |
| China RoHS | conform |
Cable
| Wiring level | 5 class |
| Wire type | Straight line |
| Outer sheath,color | black |
| Outer sheath, material | TPE |
Appendix
| Socket | FGAC-03-00A(H) |
IEC parameters
| Rated voltage | / | / | 165V～250V |
| Rated current | / | / | 10A |
| Order number | 27030000011 |
| Packing unit | 5 |
| Minimum order quantity | |
| Products weight (without packaging) | 0.7kg |
