Product certification
Product advantages
☑ Screw connection technology,safe and reliable☑ Rail installation method,suitable for transformer wiring
- 3D model
- Connection capacity
- Electrical parameters UL
- Electrical parameters IEC
- Item properties
- Material data
- Mechanical tests
- Environmental data

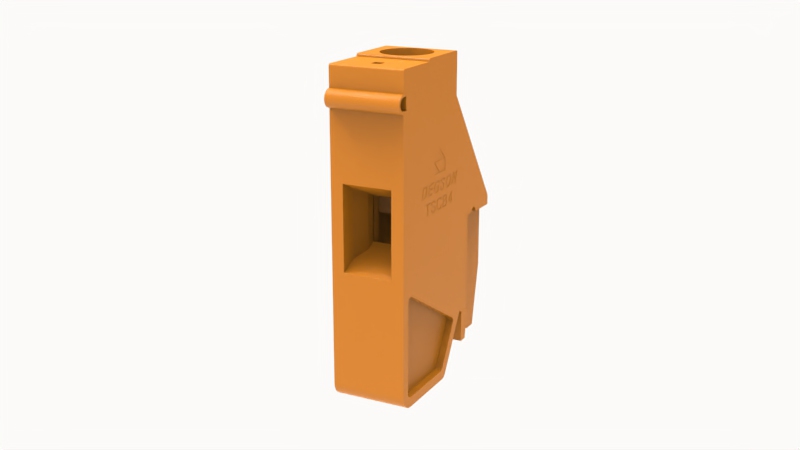

3D model
Connection capacity
| Conductor cross section solid | 0.5~4mm² |
| Conductor cross section flexible | 0.5~4.0mm² |
| AWG | 20~10AWG |
| Torque | 0.5N.m |
| Strip length | 11mm |
Electrical parameters UL
| Rated voltage (B) | 600V |
| Rated voltage (C) | 600V |
| Rated voltage (D) | 300V |
| Rated current (B) | 30A |
| Rated current (D) | 5A |
| Rated current (C) | 30A |
Electrical parameters IEC
| Rated voltage | 800V |
| Rated current | 32A |
| Rated voltage(III/2) | 800V |
| Rated power frequency voltage(1min) | 2.5KV |
Item properties
| Type of installation | panel |
| Connection method | Screw connection |
| Screwdriver | Slotted screwdriver |
| screw thread | M3 |
| Pitch | 7.5mm |
| Number of potentials | 1 |
| Pluggable or not | no |
| Number of rows | 1 |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Contact material | copper |
| Contact point metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
Mechanical tests
| Test Specification | UL1059/IEC60998 |
Environmental data
| Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
Tool
| Screwdriver | / |
| Operating tool | / |
Accessories
| Coding strip | TZB4 |
| Bridge | / |
| Marking strip | / |
| Others | / |
VDE parameters
| Overvoltage category/Degree of pollution | III/3 | III/2 | II/2 |
| Rated voltage | / | 800V | / |
| Rated current | / | 32A | / |
| Cross section | 0.5~4.0mm² | 0.5~4.0mm² | 0.5~4.0mm² |
UL parameters
| Use group | B | C | D |
| Rated voltage | 600V | 600V | 600V |
| Rated current | 30A | 30A | 5A |
| AWG | 20~10AWG | 20~10AWG | 20~10AWG |
| Order number | 10070000645 |
| Packing unit | 600 |
| Minimum order quantity | |
| Products weight (without packaging) | 3.903 |
