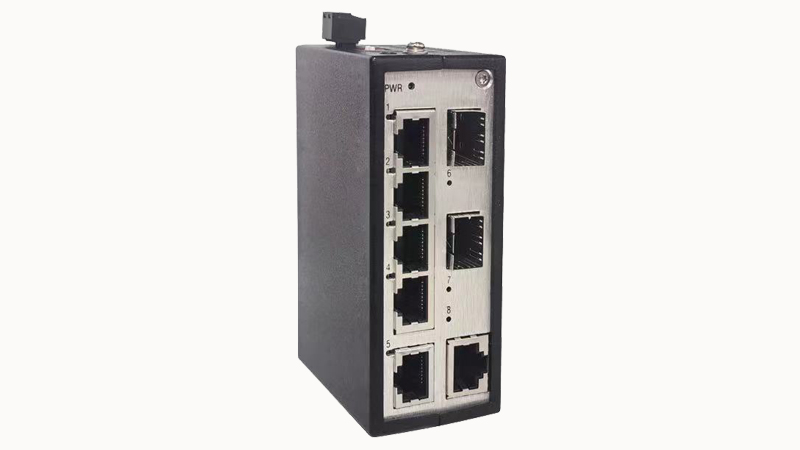

DSW-A8K0206
30090000007
2 10/100Mbs BaseX SFP slot+6 10/100Mbs BaseT port, IP30,Operating temperature-40°C~+75°C.12/24/48 VDC & 24VAC (9.6~60 VDC & 18~30 VAC) power supply enter(Only connect to class 2 power).
- 2
- 4
- 5
- 6
- 7
- 8
- 1
- 2
- 10/ 100/1000Mbs
- 10/100Mbs
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product advantages
☑Unmanaged Industrial Switch made from Anti-Corrosion Aluminum Alloy.☑2 100 BaseX SFP Port, (SFP module not included), and 6 10/100BaseT Ports.
☑12/24/48 VDC & 24VAC (9.6~60VDC & 18~30 VAC) Power Input
☑Operating Temperature from -40°C to +75°C.
☑IP30 Protection Class
- 3D model
- interface
- Mechanical structure
- exchange property
- MTBF
- Warranty
- power supply
- Environmental data
- Dimension
3D model
interface
Port 1 Type | RJ45 |
Number of ports 1 | 2 |
6 | |
Port 2 Type | SFP optical module |
Transmission rate | 10/100 Mbps |
Mechanical structure
Shell material | Die-cast aluminum alloy housing |
switch | QoS function, BSP (Broadcast Storm Protection) function |
Installation method | Card rail installation |
Protection class | IP30 |
exchange property
MAC table size | 4K |
Bandwidth backplane | 16Gbps |
packet buffer | 1.5Mb |
MTBF
Standards compliant | Telcordia SR-332 |
operating hours | ≥38,7641H |
Warranty
Warranty | 5 years |
power supply
Supply voltage range | 9.6~60VDC & 18~30VAC |
reverse voltage protection | support |
Connection Type | 2P plug-in terminal |
connecting wire diameter | 0.5~1.5mm/ 28~16AWG |
Overcurrent protection | support |
Input voltage | 12/24/48 VDC & 24 VAC |
Environmental data
working altitude | ≤2000m |
Operating temperature | -40°C~+75°C |
storage temperature | -40°C~+85°C |
humidity | 5% ~ 95% (non-condensing) |
Dimension
length | 100mm |
61.8mm | |
width | 40mm |
Order number | 30090000007 |
Packing unit | 1 STK |
Minimum order quantity | 1 STK |
Products weight (without packaging) | 230g |
