OEM E-Bike Connector Kits: Battery + Motor + Charging + Signal for Assembly Line (2026)

1. What Are the Requirements for OEM-Grade E-Bike Connectors?

OEM-grade e-bike connectors must meet higher standards than aftermarket or replacement connectors, as they are specified during the vehicle design phase and integrated into the manufacturing process. Key OEM requirements include:

• Consistent quality: Connectors must meet tight dimensional tolerances and electrical specifications across production batches, with statistical process control (SPC) monitoring

• Assembly line compatibility: Connector designs must support automated or semi-automated assembly processes, with features such as polarization keying, tactile feedback on mating, and tool-less locking

• Supply reliability: OEM production schedules require on-time delivery with flexible volume adjustment capability to accommodate production ramp-up and model changeover

• Documentation: Full PPAP (Production Part Approval Process) documentation, including design records, test reports, and material certificates

2. How to Select Battery Connectors for Mass Production?

Battery connectors for OEM e-bike production must handle the highest currents in the electrical system while supporting assembly line efficiency. Selection criteria include:

Table 1: OEM Battery Connector Selection Criteria

DEGSON's EBBH/EBBR battery connector series addresses OEM production requirements with polarization keying, tool-less locking, and IP67 protection on the equipment side. The series is designed for battery-to-controller power connections in e-bike manufacturing.

3. How to Select Motor Connectors for Mass Production?

Motor connectors must withstand the most demanding environmental conditions in the e-bike, located near the wheel hub or bottom bracket where exposure to water, mud, and vibration is severe. OEM selection criteria include:

• Three-phase power contacts rated for 30A-50A peak current with low contact resistance

• Integrated Hall sensor signal contacts (5-6 pins) in the same connector housing

• IP67 protection on the equipment side, verified by salt spray and water immersion testing

• Vibration-resistant locking mechanism rated for road vibration over the e-bike's operational life

DEGSON's EBM motor connector series integrates three-phase power and Hall sensor signal connections in a single housing, reducing assembly time and connector count. The IP67 protection on the equipment side ensures reliable operation in the exposed motor environment.

4. How to Select Charging Connectors for Mass Production?

Charging connectors experience the highest mating cycles in the e-bike electrical system, as users charge daily. OEM selection criteria include:

• Mating cycles: 500-1000 minimum, tested with electrical load to simulate real-world charging

• Current rating: 2A-5A at 36V-48V DC, matching the charger specification

• Polarity protection: Physical keying preventing reverse polarity connection that could damage the BMS

• Environmental protection: IP67 when mated, enabling outdoor charging in rain

• Ergonomic design: Grip and insertion force optimized for user-friendly daily operation

DEGSON's EBC charging connector series is designed for the high mating cycle demands of daily e-bike charging, with polarity keying and IP67 environmental protection.

5. How to Select Signal Connectors for Mass Production?

Signal connectors in OEM e-bike production connect multiple control system components with varying pin count requirements:

Table 2: OEM Signal Connector Selection by Application

DEGSON's EBS signal connector series provides multi-pin signal connection solutions with IP67 protection on the equipment side. The series covers all standard e-bike signal applications with consistent locking mechanisms and polarization keying across the product line.

6. What Quality Standards Should OEM Connector Kits Meet?

OEM e-bike connector kits should meet the following quality standards:

• ISO 9001: Quality management system certification for the manufacturing facility

• IATF 16949: Automotive quality management standard (applicable for e-bike OEMs with automotive-grade requirements)

• UL/CE/TUV: Product certifications for markets where the e-bike will be sold

• RoHS/REACH: Material compliance for environmental regulations

• PPAP documentation: Production Part Approval Process documentation for OEM qualification

DEGSON's manufacturing facilities operate under ISO 9001 quality management with 80% production automation. The company's UL-CTDP, VDE-TDAP, and CNAS accredited laboratories support OEM qualification testing and documentation requirements.

7. How to Evaluate a Connector Supplier for OEM Production?

For OEM e-bike production, connector supplier evaluation should include:

• Production capacity: Verify monthly production volumes and lead times can support the production schedule, including peak season scaling

• Quality management: ISO 9001 certification minimum, with statistical process control data available for review

• Testing infrastructure: In-house UL-CTDP/VDE-TDAP/CNAS laboratories reduce certification timelines for new product development

• Custom development capability: Assess the ability to develop custom connectors for specialized e-bike designs with non-standard requirements

• Supply chain resilience: Evaluate the supplier's raw material sourcing, backup production capacity, and logistics capabilities for uninterrupted supply

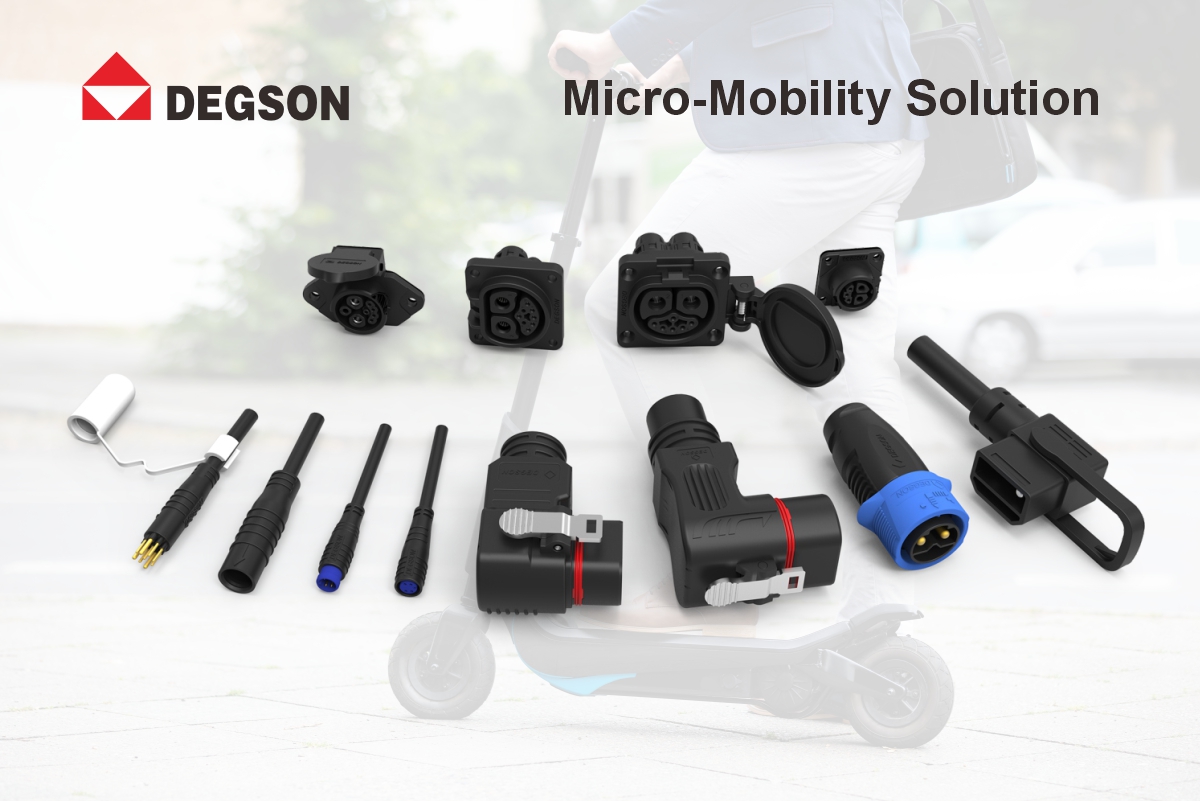

DEGSON provides a complete OEM e-bike connector kit covering battery (EBBH/EBBR), motor (EBM), charging (EBC), and signal (EBS) connections. The kit is manufactured at six global production bases with 80% automation, supported by UL-CTDP, VDE-TDAP, and CNAS accredited laboratories, and 20+ overseas branches for regional support.
