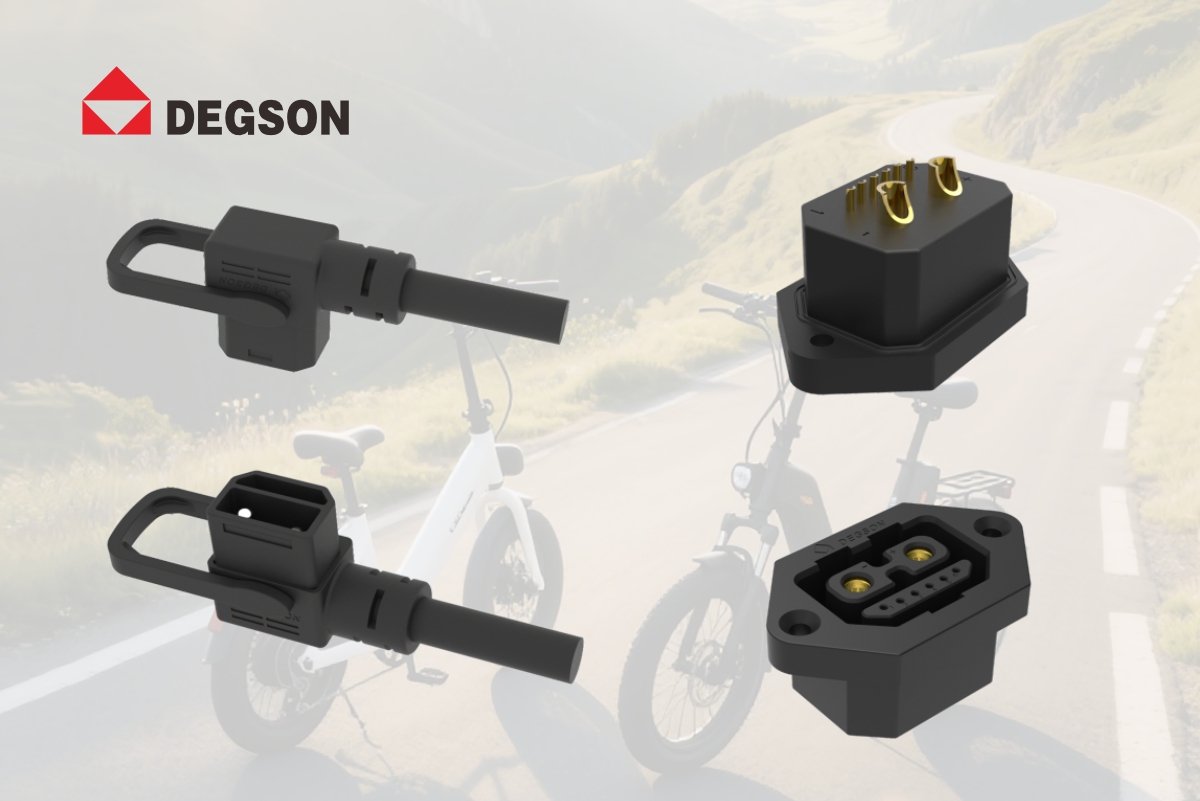

DEGSON EBBR 40A Rectangular Power Connector – Empowering E-Bikes and Electric Motorcycles
In the fast-evolving world of e-bikes and electric scooters, performance gains come not only from motors and batteries, but also from the invisible link that connects them. Every engineer has faced this dilemma: you need a connector that can handle high current, fit into a cramped battery compartment, and still leave room for smart BMS communication. Most connectors force you to choose between power and intelligence.
Designed specifically for the demanding environment of micro-mobility, the EBBR rectangular power connector delivers 40A continuous current alongside a dedicated 2A signal circuit in a single, compact housing. It answers the question every engineer is asking: how do I pack more power and smarter control into less space?
Three High-Demand Scenarios, One Tailored Solution
The EBBR series is a tailored solution for specific, high-demand scenarios:
Imagine a 48V 40Ah battery pack driving a high-torque hub motor. Under full throttle, the current surges past 35A. A standard connector would overheat, lose efficiency, and eventually fail. The EBBR's 40A continuous rating provides ample safety margin, ensuring stable power delivery even during extended hill climbs or heavy loads.
Each swap requires a connector that endures thousands of cycles while maintaining low contact resistance. The EBBR, rated for over 3,000 mating cycles, is built for this high-frequency use. Its integrated signal pins allow the BMS to read battery health instantly upon connection, enabling "smart swapping" that prevents faulty batteries from entering circulation.
Automated guided vehicles and cleaning robots operate in dusty, humid environments. They need a connector that seals tightly and stays reliable over time. With an IP67 rating and 72-hour salt spray resistance, the EBBR performs reliably where ordinary connectors rust or short-circuit.
Four Key Engineering Decisions Behind the EBBR
What sets the EBBR apart from standard rectangular connectors comes down to four key engineering decisions:
1. Dual-Channel Architecture: Power + Signal in One Connector
Traditional connectors force you to run separate cables for power and BMS communication, doubling space and weight. The EBBR integrates both into a single interface: a 40A power channel for main battery output, and a 2A signal channel for real-time data transmission. This cuts wiring complexity in half and frees up precious space inside the battery compartment.
2. Ergonomic Handle Unlock: No More Yanking
Anyone who has disconnected a high-current connector knows the struggle: stiff cables, slippery grip, pull force exceeding 100N. The EBBR features an integrated handle that provides mechanical leverage. Simply hook your fingers under the handle and pull smoothly — no yanking, no damaged cables, no frustrated workers on the production line.
3. IP67 + Salt Spray Testing: Built for the Worst Roads
Micro-mobility vehicles face rain, mud, dust, and de-icing salt. The EBBR achieves IP67 protection (dust-tight and submersible up to 1 meter for 30 minutes) and passes 72-hour neutral salt spray testing. This means it survives monsoon seasons in Vietnam, coastal humidity in Indonesia, and salted winter roads in Europe.
4. Polarized Mating + Audible and Visual Feedback
Misalignment during assembly is a common cause of connector failure. The EBBR uses a polarized keying system that prevents incorrect insertion. Upon full engagement, operators hear a distinct "click" and see alignment marks match up — eliminating guesswork and reducing defect rates on the assembly line.
A Future-Ready Micro-Mobility Connection Solution
The Degson EBBR 40A rectangular power connector is more than just a component — it is a strategic enabler for the next generation of micro-mobility vehicles. By combining high-current capacity, intelligent signal integration, and robust environmental protection in a compact footprint, it helps engineers design smarter, more reliable, and more competitive products. When your design team evaluates interface options for your next vehicle platform, add the EBBR to your comparison list. You can:
-
Contact the Degson sales team for datasheets and 3D models
-
Request a complete Degson micro-mobility connector product catalog
-
Apply for samples for real-world vehicle testing
Contact: www.degson.com
