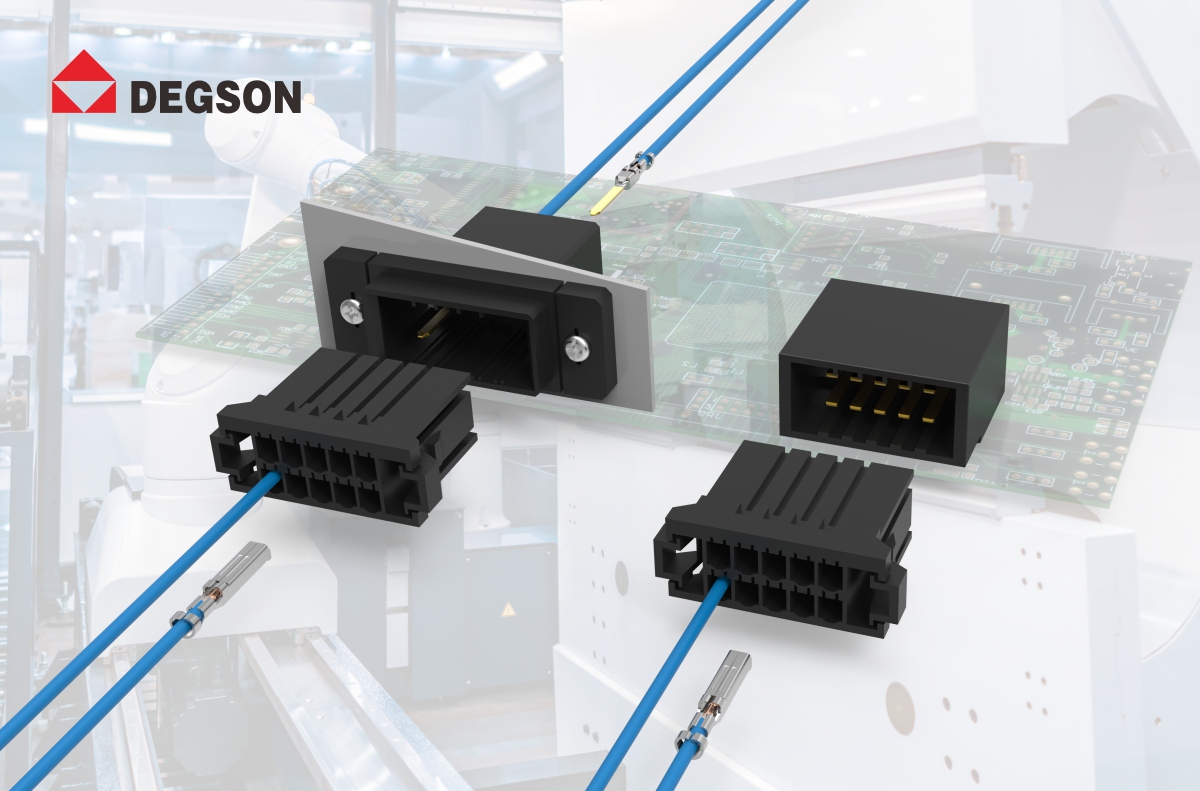

DEGSON 9EDGCP Series Crimp-Type Pluggable Connectors
1. Industry Background & Product Positioning
Driven by the rapid iteration of industrial automation, intelligent equipment and new energy devices, modern mechanical designs are trending toward miniaturization, modularization and high integration. Traditional welding and screw-wiring solutions can no longer meet mass-production requirements due to complicated procedures, low efficiency, difficult maintenance and poor adaptability for standardized wire harness manufacturing.
Against this backdrop, crimp-type pluggable connection technology has become the mainstream interconnection solution for industrial control, robotics, elevator and energy storage systems. The newly launched DEGSON 9EDGCP series adopts mature industrial crimp technology as its core, covering full mainstream pitches and diverse mounting structures. It delivers a standardized, high-efficiency and highly reliable all-in-one connection solution for wire-to-board, wire-to-wire and panel-feed-through interconnections.
Specially developed for industrial robots, elevator control systems, automated machinery, energy storage systems and intelligent control devices, the 9EDGCP series balances high-efficiency automated harness production and flexible on-site assembly & replacement, perfectly fitting the design trends of compact layout, modular configuration and long-term stability for modern industrial equipment.
2. Four Core Advantages
2.1 Industrial Crimp Technology: High-volume Efficiency & Gas-tight Stable Connection
The 9EDGCP series adopts professional industrial crimp termination. The crimp pin is mechanically compressed to form seamless, gas-tight contact with wire cores, delivering superior performance compared with welding and screw connection:
-
Fully compatible with automatic wire harness processing to maximize mass-production efficiency
-
Maintains stable contact resistance with excellent vibration resistance, anti-oxidation and anti-loosening performance
-
Supports fast on-site crimping and pluggable replacement, significantly reducing labor assembly and maintenance costs
Crimp termination has become the most reliable and widely adopted termination method for large-scale industrial equipment manufacturing.
2.2 Full Pitch Coverage for Universal Industrial Compatibility
The 9EDGCP product line covers four industry-standard pitches: 2.0mm, 2.5mm, 3.81mm and 5.08mm, with complete single-layer and double-layer structures. It fully adapts to mainstream application scenarios including low-voltage signal circuits, control board I/O connections and small-power power loops, enabling unified component selection, standardized design and simplified supply chain management.
2.3 Four Mounting Forms for Maximum Layout Flexibility
To adapt to diverse equipment structures, 9EDGCP sockets support four flexible mounting methods: horizontal PCB mounting, vertical PCB mounting, panel feed-through mounting and free-floating installation. Supporting both prefabricated harness mass production and on-site wiring, the series realizes flexible switching between wire-to-board and wire-to-wire connections, matching compact cabinets, modular equipment and split-type system layout requirements.
2.4 Physical Anti-misplug Design Ensures Assembly Safety
Equipped with X/Y dual-direction rib anti-keying structure, the 9EDGCP series achieves precise mating for identical specifications and complete blocking for mismatched or misaligned interfaces. This physical anti-misplug mechanism effectively eliminates short-circuit risks caused by incorrect insertion during assembly and after-sales maintenance, greatly improving production yield and operational safety.
3. Crimp Connection Technology: Mainstream Reliable Solution for Industrial Equipment
Crimp termination is the core process for standardized wire harnesses in high-end industrial equipment. By mechanical deformation of crimp pins, terminals and stranded wire cores form gap-free, gas-tight locking connections. This technology features vibration resistance, thermal shock resistance, zero loosening risk, no virtual welding or burnout failure, compact size for high-density wiring, and cost-effective mass production. It has been widely applied in high-reliability fields such as industrial robots, elevators, automated production lines, energy storage systems and new energy electronic control devices.
4. Complete Product Matrix for One-stop Selection
The 9EDGCP series builds a full-coverage product matrix, covering high-density signal transmission to low-power power supply scenarios:
| Series | Pitch | Structure | Application |
|---|---|---|---|
| 9EDGCP32 | 5.08mm | Single / Double-layer | Medium-power signal and power circuits |
| 9EDGCP31 | 3.81mm | Single / Double-layer | Mainstream industrial control applications |
| 9EDGCP21 | 2.5mm | Double-layer | High-density miniature control boards |
| 9EDGCP20 | 2.0mm | Ultra-fine pitch | Miniaturized and highly integrated intelligent devices |
Supporting 2-series and 3-series crimp pins for full compatibility. The full-range product portfolio enables one-stop component selection, simplifies BOM management and reduces overall supply chain complexity for system designers.
5. Quality & System Certification Assurance
With more than 35 years of expertise in industrial connection technology, DEGSON owns UL-CTDP, VDE-TDAP and CNAS accredited laboratories, supporting independent full-range testing and certification capabilities.
The 9EDGCP series inherits DEGSON's industrial-grade quality standards:
-
Robust structural design with excellent vibration and temperature resistance for harsh industrial environments
-
Stable electrical performance guaranteed by standardized industrial crimping processes
-
Compatible with global mainstream certifications to support exported equipment projects
It delivers reliable connection safety and stability throughout the whole lifecycle, from harness production and on-site assembly to long-term field operation.
6. Frequently Asked Questions
Q1: What is the lead time for standard products?
Safe stock has been established for standard models of this series, with a three-week lead time for general-purpose items. This constitutes one of our key advantages compared with peers such as TE Connectivity.
Q2: Is crimped wire harness service available?
Crimped wire harness service is available upon customer request, with separate charges applied.
Q3: Can models be shipped with nuts?
Models 9EDGCP-31/32KRMDX can be shipped together with nuts. Value-added service is required for partial part numbers.
Q4: How to select gold-plated contact finish?
Based on diverse end-application conditions:
1. Gold-plated finish is highly recommended for applications operating at ≤3 V or ≤1 A.
2. Gold-plated contacts are suggested for terminal blocks with 20 positions or more.
3. Gold-plated terminals are recommended under vibration, high-temperature, or corrosive-gas environments.
4. Adopt consistent contact finish within the same end-product.
7. Product Summary
Efficient Crimping · Flexible Plugging · Anti-error Safety · Full-scenario Adaptability
DEGSON 9EDGCP crimp-type pluggable connectors adopt mature crimp technology with multi-pitch and multi-structure compatibility, perfectly meeting the design requirements of robotics, elevators, industrial automation, energy storage and intelligent equipment industries. The series empowers smarter equipment manufacturing with higher production efficiency, more flexible wiring, more stable connection and more reliable system operation.
