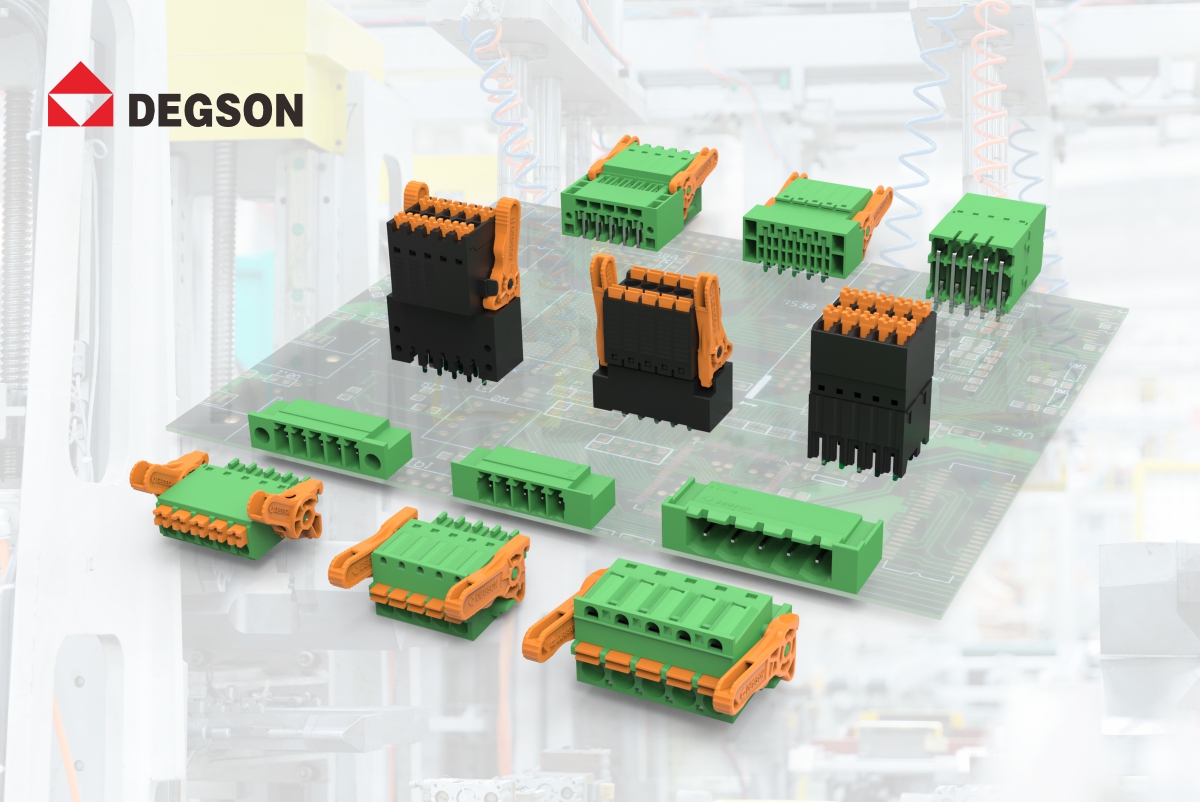

DEGSON High-Density Plug-in Connector Series
DEGSON High-Density Plug-in Connector Series
Amid the global wave of Industry 4.0, industrial equipment is accelerating iteration toward miniaturization, intelligence, high speed and integration. This imposes extremely stringent requirements on connectors, the core hub of signal transmission: they must break space constraints to realize high-density wiring, guarantee stable signal transmission under complex working conditions, and fit convenient on-site wiring and automated production processes.
DEGSON’s high-density plug-in connector series is developed to resolve these core industry pain points, delivering brand-new solutions for industrial signal transmission.
I. Technical Advantages Precisely Matching Core Industry Demands
01 High-density Miniaturized Structure to Solve Equipment Space Bottlenecks
The miniaturization trend of industrial equipment is increasingly prominent, and traditional single-layer connectors fail to meet wiring density requirements within limited space.
This series adopts a double-layer structure with multiple pitch specifications including 2.54/3.5/3.81/5.0/5.08mm. It realizes integrated transmission of more signals, data and power in a smaller space, perfectly fitting the compact layout of miniaturized industrial equipment such as PLCs, servo drives and industrial robot control modules. Compared with traditional single-layer connectors, the wiring density is increased by over 50%, effectively saving internal equipment space.
02 PUSH-IN Direct Insertion Technology Greatly Boosts On-site Wiring Efficiency
To address the pain points of tool dependence, time consumption and high error rate in industrial field wiring, the full series is equipped with PUSH-IN spring connection technology. No tools are required for wire connection, lifting wiring efficiency by more than 70% and drastically cutting labor and tool costs.
Each wiring terminal supports wire gauges ranging from 0.14mm² to 2.5mm², enabling more efficient and safer on-site wiring.
03 Full-scenario Adaptability for Harsh Industrial Conditions
• Process Compatibility: THR versions support reflow soldering and tape-and-reel packaging for automated production. They can be directly soldered via reflow equipment to improve production efficiency and consistency.
• Installation Flexibility: IP20 protection rating, compatible with 4U chassis and 4T panel mounting. Plugs feature an assisted extraction design for easier plugging and unplugging to fit diverse installation scenarios.
• Signal Stability: Made of high-conductivity copper with premium electroplating process, featuring contact resistance as low as 20mΩ and strong anti-interference performance for stable and reliable high-speed signal transmission across intelligent manufacturing, industrial automation, power & electrical, new energy and other industries.
• Structural Reliability: Plugs and sockets adopt multiple designs including flanges, press buckles and operating levers for firmer connections that resist loosening during long-term operation, ensuring stable equipment performance.
II. Signal Transmission Scenarios Empowering Multiple Industries
01 Industrial Control: Build Stable Signal Links for Intelligent Equipment
Industrial control equipment such as PLCs, DCS systems and industrial robots demand ultra-high real-time performance and stability for signal transmission.
The double-layer structure of high-density plug-in connectors perfectly matches the compact internal layout of such equipment, realizing integrated transmission of control signals, data signals and power signals. It avoids space waste and signal interference caused by layout with multiple separate connectors.
The PUSH-IN direct insertion technology speeds up on-site wiring and shortens equipment commissioning cycles, enabling more precise and rapid control response of industrial control equipment and providing core support for stable operation of intelligent manufacturing production lines.

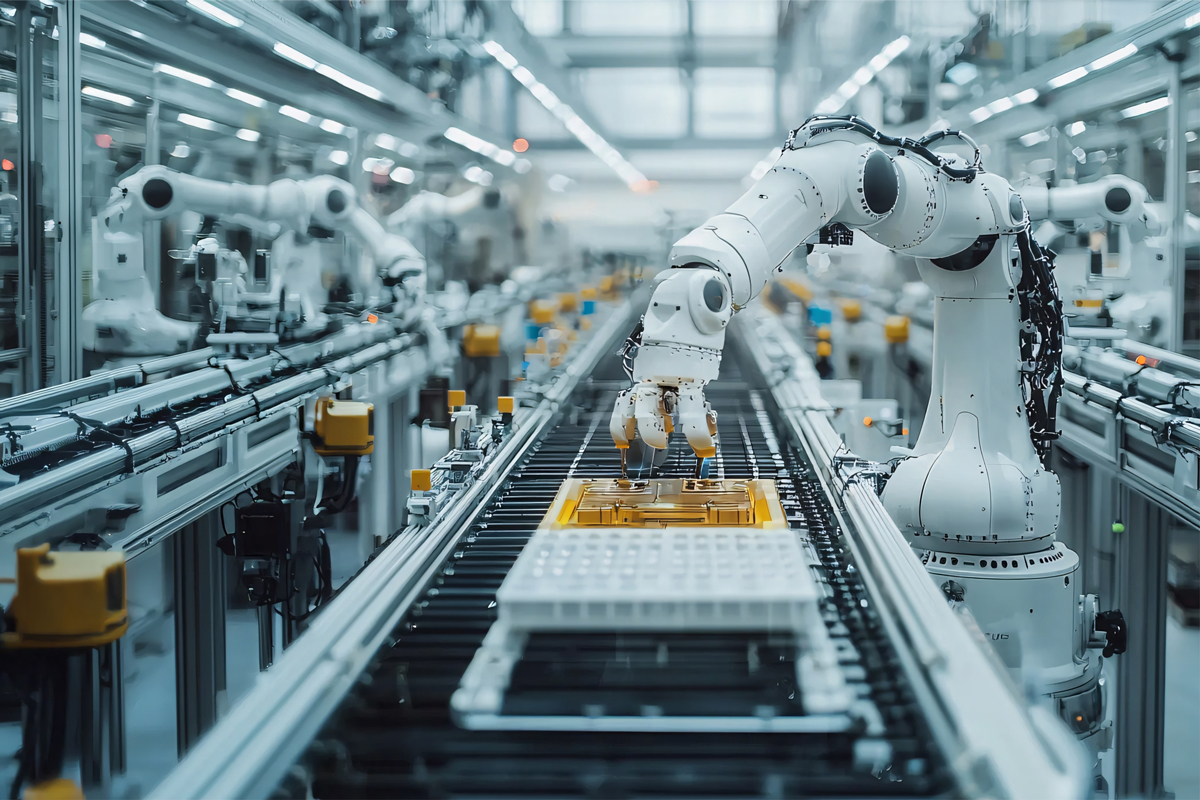

02 Automation: Support Efficient Interconnection and Flexible Upgrade of Production Lines
Signal interconnection between devices is the key to smooth operation of automated production lines.
The miniaturized design of this connector series easily fits compact installation spaces of automation equipment, while its high-density wiring capacity meets signal transmission demands of numerous sensors and actuators on production lines.
Meanwhile, its reflow-solderable design conforms to standardized automated production workflows, improving production efficiency and consistency of line equipment. In addition, the pluggable design facilitates maintenance and upgrade of production line equipment, helping enterprises quickly implement flexible production line transformation to cope with variable production demands.

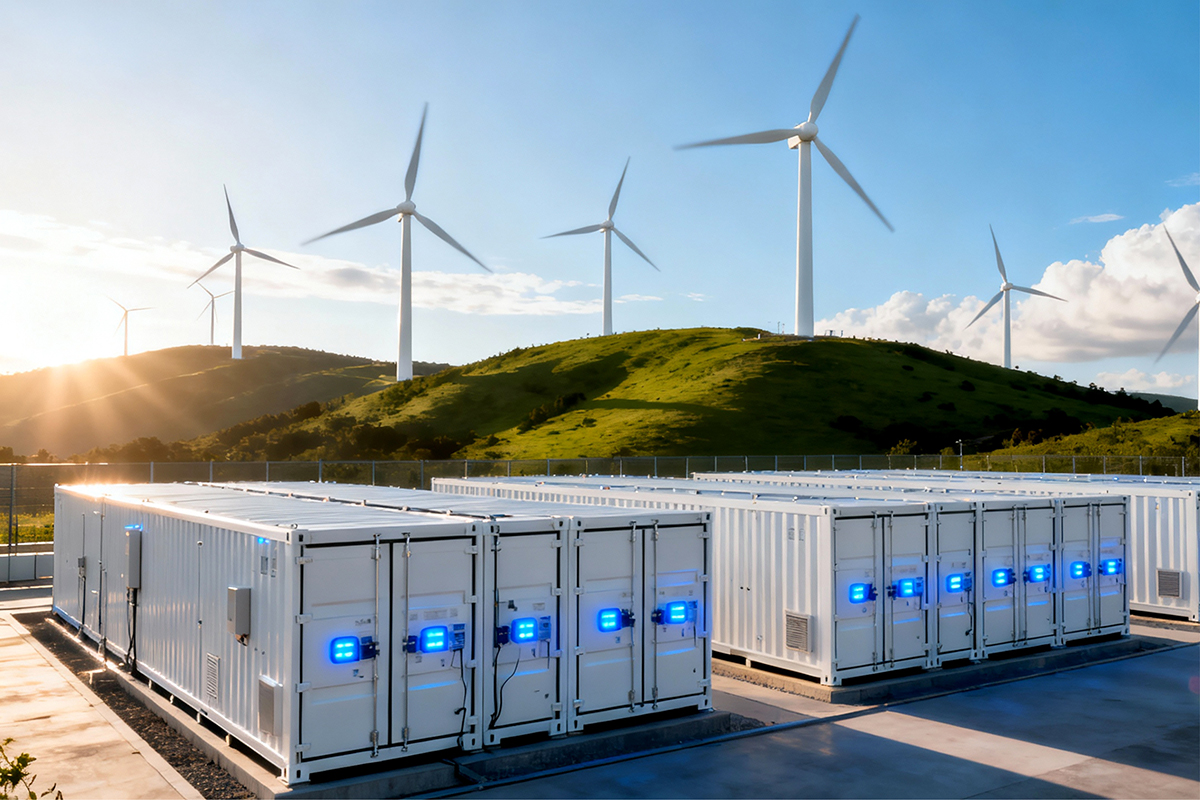

03 Energy Sector: Safeguard Stable Signal Transmission of Energy Systems
In new energy storage, power monitoring and other energy scenarios, equipment needs to operate stably for a long time under complex environments, imposing strict requirements on connector reliability and anti-interference capability.
The high-precision spring pin structure of the 15EDGKNH series ensures uninterrupted and stable signal transmission amid temperature fluctuations and electromagnetic interference. Its compact structure optimizes space layout of energy equipment and reduces equipment volume and weight. It supports efficient and reliable signal collection and transmission for new energy storage systems and power monitoring equipment, laying a solid foundation for stable operation of energy systems.
