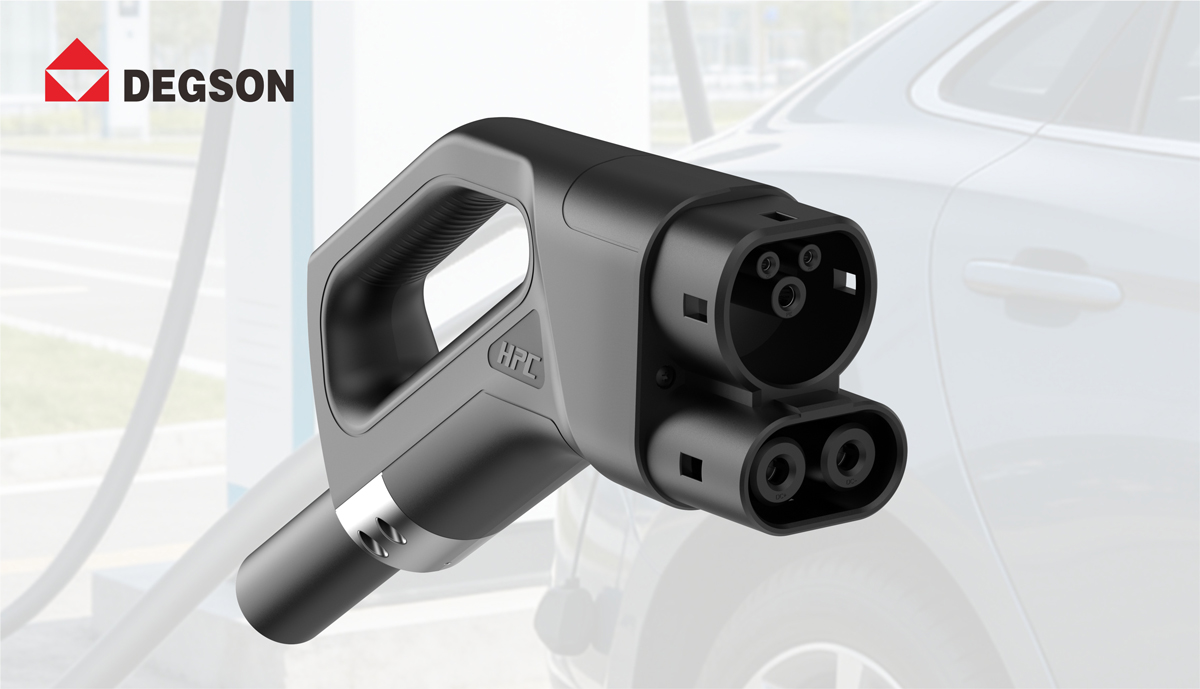

DEGSON CCS2 High-Power Charging Cable
DEGSON CCS2 High-Power Charging Cable
DEGSON CCS2 High-Power Charging Cable complies with IEC62196 CCS2 High-Power Charging Cable, perfectly matching DC charging scenarios for European standard vehicles, with full coverage of high-current specifications ranging from 200A to 380A.
Its powerful high-current carrying capacity delivers ultra-fast charging experience, drastically cutting energy replenishment waiting time and elevating fast charging efficiency to a new level. Rigorous optimizations covering core terminal plating technology and overall equipment protection design equip the product with outstanding environmental adaptability and operational stability, enabling it to withstand frequent, long-cycle and complex working conditions.
Core Pain Points of Conventional CCS2 High-Power Charging Cable
1. Low Protection Grade
Unprotected housing with split Connector body components leads to poor overall protection performance.
2. High Risk of Internal Structure Failure
Complicated internal structure with multiple sealing points increases the risk of malfunction.
3. Reduce Temperature Rise Risk
Sealed cavity design for DC terminals hinders heat dissipation.
4. High Operation & Maintenance Cost
Non-replaceable signal terminals.
Product Advantages of DEGSON CCS2 High-Power Charging Cable

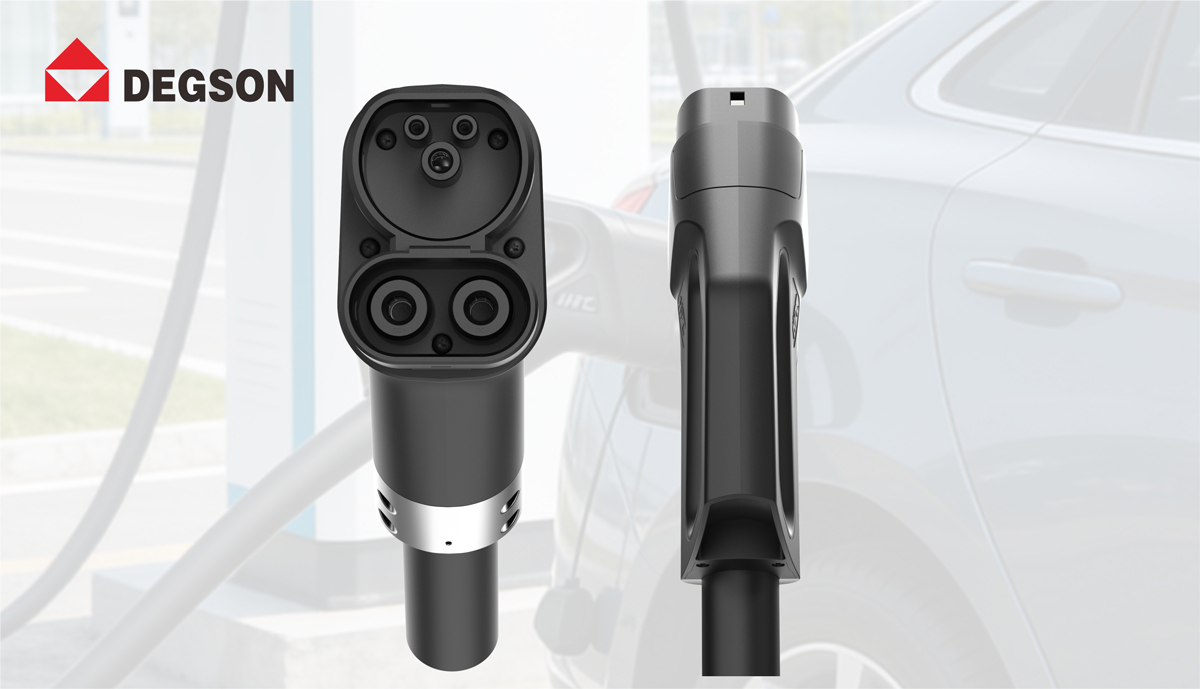

01 Integrated Connector Housing
One-piece molded Connector Housing with superior protection grade.
02 Reliable Structure
Fewer plastic injection parts for enhanced structural stability.
03 Replaceable Terminals
Both power terminals and signal terminals can be individually replaced.
04 Partial Potting
Partial glue potting effectively reduces the temperature of DC terminals.
05 4-Wire Measurement Support
Supports 4-wire voltage measurement with dedicated voltage metering wires.
06 Ultrasonic Welding
Ultrasonic welding process achieves excellent temperature rise control.

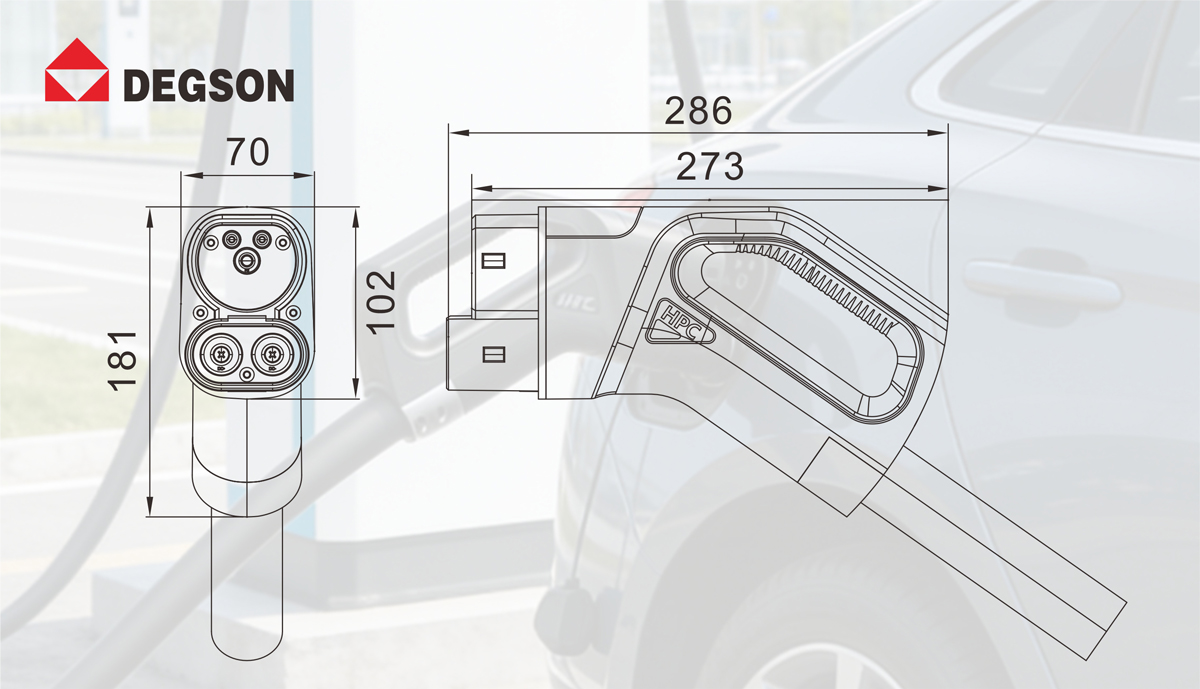

Dimension Information
Product Parameters
| Item | Specification |
| Product Name | CCS2 High-Power Charging Cable |
| Rated Voltage | 1000V |
| Rated Current | 200A / 250A / 300A / 380A |
| Temperature Sensor | 2 × PT1000 |
| Protection Grade | IP67 (Single Connector) |
| Mechanical Lifespan | Over 10,000 mating cycles |
| Mating Force | Less than 100N |
| Operating Ambient Temperature | -30℃ ~ +50℃ |
| Flame Retardant Class | UL94-V0 |
| RoHS Compliance | Compliant |

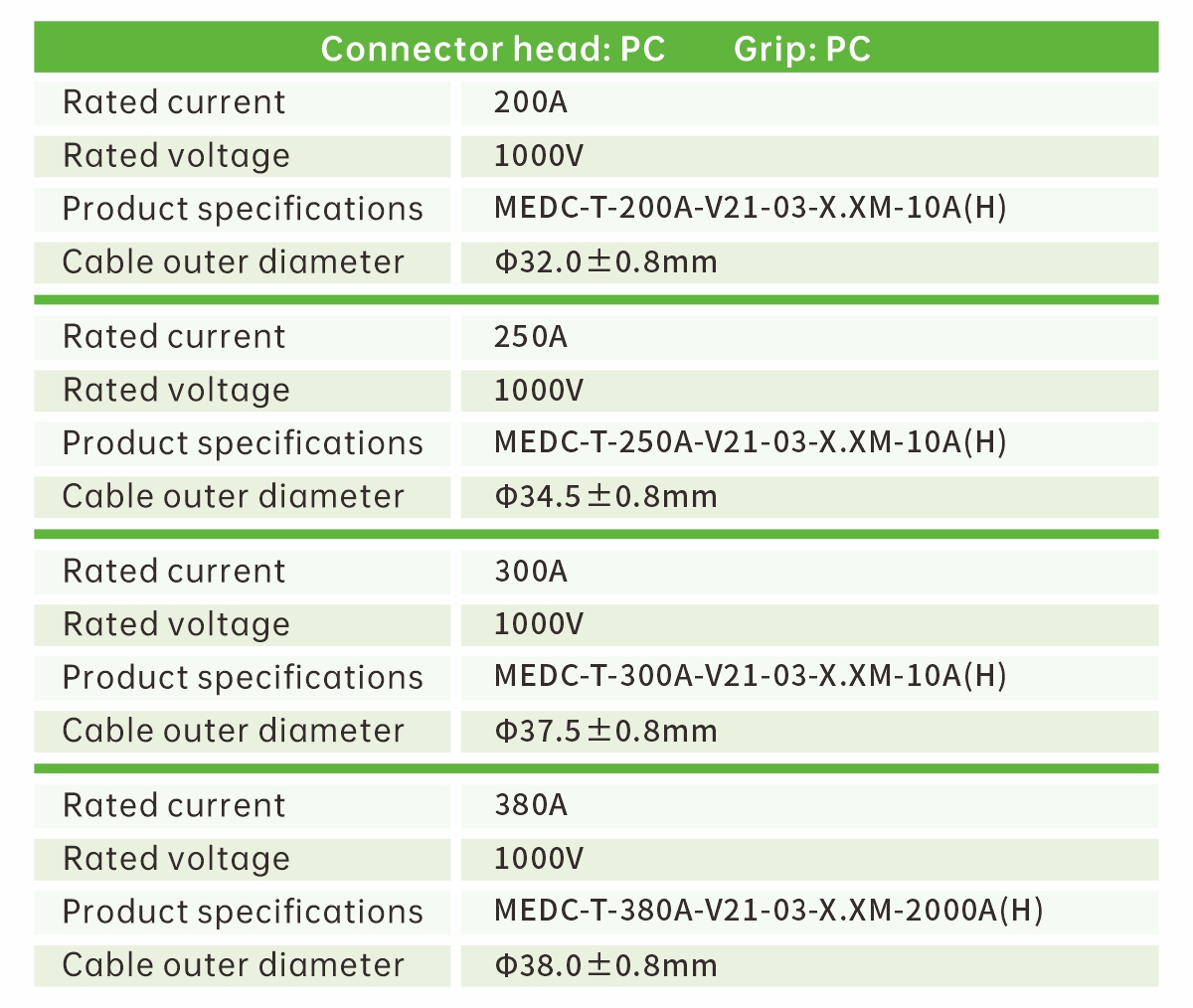

Product Selection Guide
