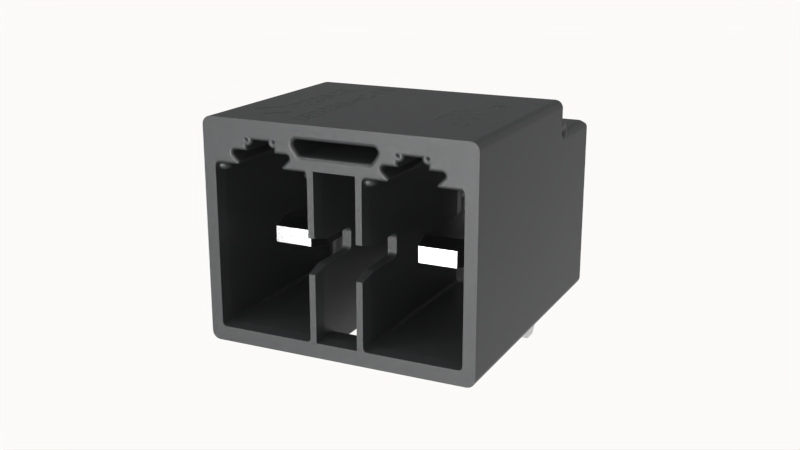

9EDGRB-HC-7.5-02P
10030011832
Pluggable terminal blocks,Rated current:25A.Rated voltage （III/2）:800V,pitch:7.5mm,Color:black,Contact surface :Sn
Color
Poles
- 02P
- 03P
- 04P
- 05P
- 06P
- 07P
- 08P
- 09P
- 10P
- 11P
- 12P
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Push-in spring connection, easy wiring☑ SNAP-LOCK series, with self-locking buckle
- 3D model
- Packaging information
- Processing notes
- Electrical parameters UL
- Electrical parameters IEC
- Item properties
- Material data
- Mechanical tests
- Environmental data
3D model
Packaging information
| Type of packaging | box-packed |
Processing notes
| Process | Wave soldering/manual soldering |
Electrical parameters UL
| Rated voltage (B) | 300V |
| Rated voltage (C) | 150V |
| Rated current (B) | 25A |
| Rated current (C) | 25A |
Electrical parameters IEC
| Rated voltage | 800V |
| Rated voltage(III/3) | 630V |
| Rated current | 25A |
| Rated voltage(III/2) | 800V |
| Rated voltage(II/2) | 1000V |
| Rated surge voltage(III/3) | 6KV |
| Rated surge voltage(II/2) | 6KV |
Item properties
| Connection direction | 0° |
| Type of installation | PCB welding |
| Pin arrangement | Single row in a straight line |
| Pitch | 7.5mm |
| Number of potentials | 2 |
| Pluggable or not | Yes |
| Number of rows | 1 |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Contact material | Copper alloy |
| Contact zone metal surface | tin-plated |
| Insulation Materials | PA66 |
| Shell color | Black |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
Mechanical tests
| Test Specification | IEC61984/ UL1059 |
Environmental data
| Relative humidity (storage/transport) | 30% ~ 70% |
| Ambient temperature (assembly) | -5℃~100℃ |
| Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
| Ambient temperature (storage / transport) | -40℃~70℃ |
VDE parameters
| Overvoltage category/pollution level | III/3 | III/2 | II/2 |
| Rated voltage | / | / | / |
| Rated current | / | / | / |
| Wiring capacity | / | / | / |
UL parameters
| Application category | B | C | D |
| Rated voltage | 300V | / | 300V |
| Rated current | 20A | / | 10A |
| AWG | / | / | / |
| Order number | 10030011832 |
| Packing unit | 720 |
| Minimum order quantity | |
| Products weight (without packaging) | 2.962 |
