DSW-ECT-A4K0202-S-STA
30090000051

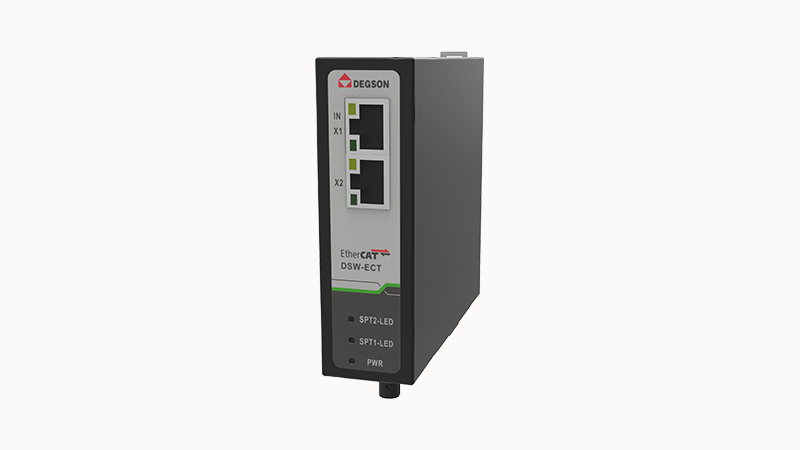

2 RJ45 ports (1 EtherCAT input port and 1 EtherCAT output port) and two ST optical fiber ports (2 EtherCAT output ports), including optical modules, support cascading and hot swappable, and do not support EtherCAT ring network
RJ45
- 2
- 4
- 6
ST
- 2
ST Function
- 1 Input
- 2 Output
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ 4-port (2 optical 2 electrical) branch, ST port, with optical module☑ Metal shell, more suitable for harsh industrial environment
☑ Anti-electromagnetic interference, more stable communication transmission
☑ Supports DC-distributed clock synchronization
☑ Supports the cascading function and hot swap of network cables
☑ Flexible composition of a variety of topologies
- 3D model
- Basic information
- Power source
- Physical characteristics
- Environmental requirement
- Environmental requirements
- Power supply
3D model
Basic information
| Port | 2 RJ45 ports (1 EtherCAT input port, 1 EtherCAT output port) 2 ST interfaces (2 EtherCAT output ports) |
| Network protocol | EtherCAT |
| Transmission rate | 10/100BaseT (X) Automatic detection |
| Transmission medium | STP CAT.5，ST Single-core single-mode fiber |
| LED indicator | Power indicator: PWR; Interface indicator: Network port (Link/ACT) |
| Distributed clock | Support |
Power source
| Connection diameter | 1.0~2.5mm² |
Physical characteristics
| Installation mode | DIN35 |
| Shell | Aluminium alloy housing |
| Class of protection | IP40 |
| Product size | 29×95×102(mm) |
Environmental requirement
| Operating temperature | ‐10℃~ +55℃ |
Environmental requirements
| Permissible ambient temperature (storage) | -40-85 ℃ |
| Relative humidity (non condensing) | 5-95% RH |
Power supply
| Supply voltage | 24V DC +20%/ -15% |
| Reverse power protection | Yes |
| Overcurrent protection | support |
| Order number | 30090000051 |
| Packing unit | 1 |
| Minimum order quantity | 1 |
| Products weight (without packaging) | 0.5KG |
