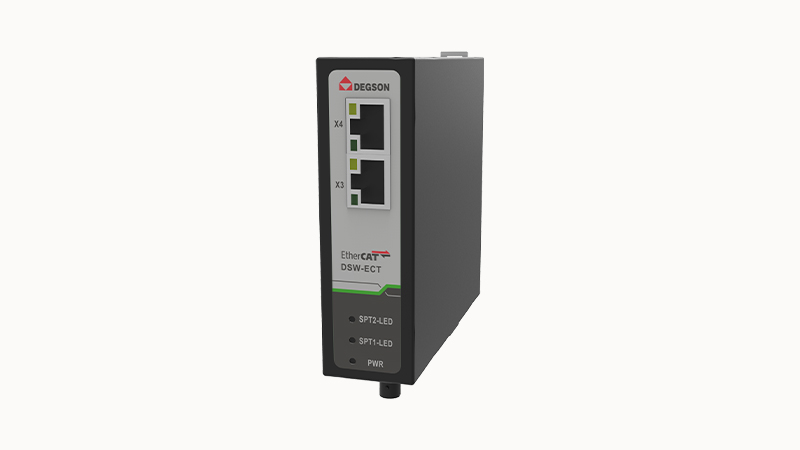

DSW-ECT-A4K0202-S-STB
30090000052
2 ST optical ports (one EtherCAT input port and one EtherCAT output port) and two RJ45 ports (two EtherCAT output ports), including optical modules, support cascading and hot swappable, but do not support EtherCAT ring network
RJ45
- 2
- 4
- 6
ST
- 2
ST Function
- 1 Input
- 2 Output
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ 4-port (2 optical 2 electrical) branch, ST port, with optical module☑ Metal shell, more suitable for harsh industrial environment
☑ Anti-electromagnetic interference, more stable communication transmission
☑ Supports DC-distributed clock synchronization
☑ Supports the cascading function and hot swap of network cables
☑ Flexible composition of a variety of topologies
- 3D model
- Basic information
- Power source
- Physical characteristics
- Environmental requirement
- Environmental requirements
- Power supply
3D model
Basic information
| Port | 2 ST fiber ports (1 EtherCAT input port, 1 EtherCAT output port) 2 RJ45 ports (2 EtherCAT output ports) |
| Network protocol | EtherCAT |
| Transmission rate | 10/100BaseT (X) Automatic detection |
| Transmission medium | STP CAT.5，ST Single-core single-mode fiber |
| LED indicator | Power indicator: PWR; Interface indicator: Network port (Link/ACT) |
| Distributed clock | Support |
Power source
| Connection diameter | 1.0~2.5mm² |
Physical characteristics
| Installation mode | DIN35 |
| Shell | Aluminium alloy housing |
| Class of protection | IP40 |
| Product size | 29×95×102(mm) |
Environmental requirement
| Operating temperature | ‐10℃~ +55℃ |
Environmental requirements
| Permissible ambient temperature (storage) | -40-85 ℃ |
| Relative humidity (non condensing) | 5-95% RH |
Power supply
| Supply voltage | 24V DC +20%/ -15% |
| Reverse power protection | Yes |
| Overcurrent protection | support |
| Order number | 30090000052 |
| Packing unit | 1 |
| Minimum order quantity | 1 |
| Products weight (without packaging) | 0.5KG |
