Simple high current Connector-Bolt connector
Simple high current Connector-Bolt connector
28010000284

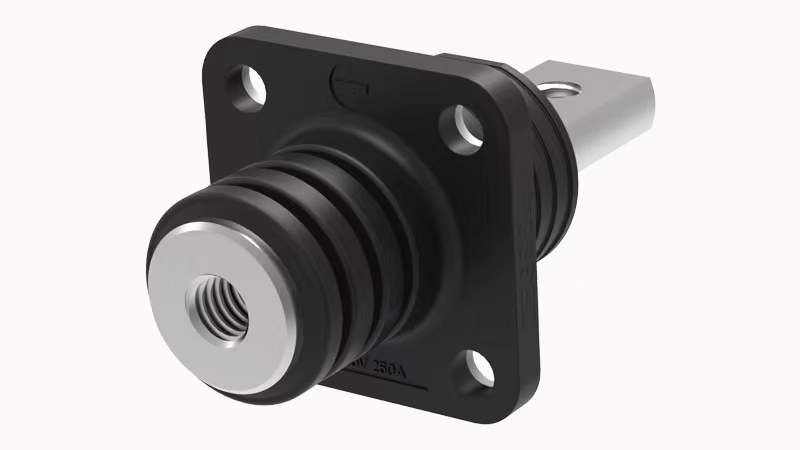

Simple high current Connector-Bolt connector，Applied in the field of energy storage Current: 250A, Voltage: 1500V, Certification: UL Negative：Bolt connector：EGD-250A-70-B/S-BK-10 Anti-dust cover: CAP-EGD-120/250-BK NO：28030000030
Color
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ 360° wiring in any direction☑ Small size, saves space
☑ Optional Anti-dust cover
3D model
Material data
| Shell color | Black |
| Flammability rating | UL94V-0 |
Electrical parameters
| Rated voltage | 1500V |
| Rated current | 250A |
Environmental data
| Ambient temperature (operation) | -40℃~125℃(depending on derating curve) |
Electrical parameters
| Rated voltage | 1500V | ||
| Rated voltage | 250A |
| Order number | 28010000284 |
| Packing unit | / |
| Minimum order quantity | / |
| Products weight (without packaging) | / |
