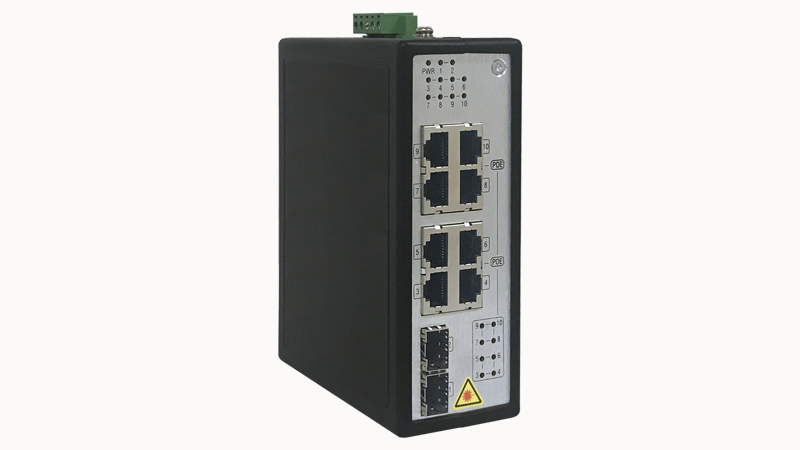

DSW-A10K2080P
30090000010
2 10/ 100/1000Mbs BaseXSFPslot(does not containSFP optical module)+8802.3af/at PoE10/ 10/100Mbs Mbs BaseTElectrical interface,1CLI management port .IP30,Operating temperature-40～75℃.MTBF≥400,000H.
Base T
- 4
- 8
Base X SFP
- 2
Bandwidth
- 10/ 100/1000Mbs
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product advantages
☑Unmanaged Industrial Switch made from Anti-Corrosion Aluminum Alloy.☑ 100/1000BaseX SFP Ports(SFP module not included),8 802.3af/at PoE 10/100/1000BaseT Ports，1 Management Serial CLI Port.
☑MTBF over 400K hours.
☑Operating Temperature from -40°C to +75°C.
☑IP30 Protection Class.
☑Dual 48‐57VDC Power Inputs.
- 3D model
- Interface
- Mechanical structure
- Exchange property
- MTBF
- Warranty
- Power over Ethernet (PoE)
- Power supply
- Environmental data
- Dimension
3D model
Interface
| Port 1 Type | RJ45 |
| Number of ports 1 | 8 |
| 2 | |
| Port 2 Type | SFP optical module |
| Transmission rate | 10/100/1000 Mbps |
Mechanical structure
| Shell material | Die-cast aluminum alloy housing |
| Installation method | Card rail installation |
| Protection class | IP30 |
Exchange property
| MAC table size | 4K |
| Bandwidth backplane | 20Gbps |
| packet buffer | 1.5Mb |
MTBF
| Standards compliant | Telcordia SR-332 |
| operating hours | ≥400,000H |
Warranty
| Warranty | 5 years |
Power over Ethernet (PoE)
| PoE output standard 1 | IEEE 802.3af |
| PoE output standard 2 | IEEE 802.3at |
| PoE output power1 | 240W |
| PoE output power2 | 124.8W |
| PoE output current1 | 0.625A |
| PoE output current 2 | 0.325A |
Power supply
| Supply voltage range | 9.6~60VDC & 18~30VAC |
| Reverse voltage protection | support |
| Connection Type | 5P plug-in terminal |
| Connecting wire diameter | 0.5~1.5mm/ 28~16AWG |
| Overcurrent protection | support |
| Input voltage | 48‐57VDC redundant dual input |
Environmental data
| working altitude | ≤2000m |
| Operating temperature | -40°C~+75°C |
| storage temperature | -40°C~+85°C |
| humidity | 5% ~ 95% (non-condensing) |
Dimension
| high | 140mm |
| length | 110mm |
| width | 52mm |
| Order number | 30090000010 |
| Packing unit | 1 STK |
| Minimum order quantity | 1 STK |
| Products weight (without packaging) | 620g |
