Relay Socket-DPYF-14A-E3-00A(H)
30020000048

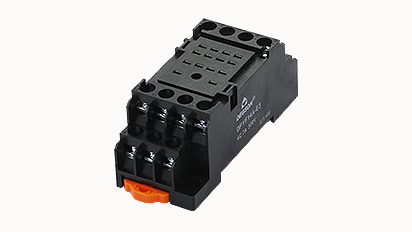

DPYF Relay Socket, used for 4DPT relays, screw connections
Specifications
- General socket
- Protective structure
Current
- 7A
- 10A
Pin Number
- 08
- 14
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Screw base relay socket☑ Safe isolation between coil and contacts
☑ 7A ,4PDT
3D model
Dimension
| width | 29.2mm |
| length | 76.5mm |
| Depth including bracket | 31mm |
Environmental data
| Ambient temperature (operation) | -40~+65℃ |
| Ambient temperature (storage / transport) | -40℃~+65℃ |
Technical data
| Rated voltage UN | 300V |
| Rated current IN | 7A |
| Installation location | Arbitrary |
| Assembly instructions | DIN35 rail |
Connection data 1
| Connection name | enter |
| Connection method | Screw connection |
| Stripping length | 7-8mm |
| screw thread | M3 |
| Cross section of flexible conductor | 0.5-2.5mm² |
| Connectable guide cross section AWG | 20-14AWG |
Connection data 2
| Connection name | Output |
| Stripping length | 7-8mm |
| Cross section of flexible conductor | 0.5-2.5mm² |
| Connectable guide cross section AWG | 20-14AWG |
| Connection method | Screw connection |
Accessory
| Bridge | DFJ6-29-13-00Z(H) |
UL parameters ( No.E541592 )
| Insulation level | Basic isolation | ||
| class of pollution | 3 | ||
| Overvoltage category | Ⅲ |
| Order number | 30020000048 |
| Packing unit | 10 SKT |
| Minimum order quantity | 10 SKT |
| Products weight (without packaging) | 56g |
