DEGSON Energy Storage Connectors: Empower Iteration & Upgrade of C&I Energy Storage with Precision Connection
DEGSON Energy Storage Connectors: Empower Iteration & Upgrade of C&I Energy Storage with Precision Connection
Driven by the in-depth advancement of the Dual Carbon goals and the optimization of industrial power consumption structure, commercial and industrial (C&I) energy storage has evolved from auxiliary energy allocation into a core energy backbone for industrial parks, factories, data centers and high-energy-consuming enterprises. It undertakes multiple missions including peak shaving & valley filling, PV power consumption, backup power supply and demand response.
As the "neural hub" for energy transmission within energy storage systems, connector performance directly determines system efficiency, safety and service life. Featuring full-scenario adaptability and core technological strengths, DEGSON energy storage connectors act as reliable partners for the iteration of C&I energy storage, accurately matching industrial development demands and safeguarding efficient operation of green energy.
01 C&I Energy Storage Systems: Types, Characteristics & Core Connector Requirements
(1) Main Types & Features of C&I Energy Storage Systems
Based on current industrial application scenarios, C&I energy storage systems fall into three major categories, all imposing extremely high standards for connection reliability:
1. DC-Coupled PV-Storage Integrated Machines
Integrated PV, energy storage and converter design with high conversion efficiency and compact footprint. Ideal for new factories and rooftop PV matching. Core demands: miniaturized, low-loss connections for both indoor and outdoor installation, capable of handling dual current fluctuations from PV power generation and battery charge-discharge.
2. AC-Coupled Distributed Energy Storage
Modular cabinet design supporting flexible parallel expansion. Suitable for retrofitting existing PV facilities and peak shaving for small & medium factories. Connectors need quick plug-and-play and anti-misplug features to facilitate on-site assembly and later capacity expansion & maintenance, while resisting humidity and vibration interference in industrial environments.
3. Large Containerized C&I Energy Storage
Centralized deployment with single cabinet capacity up to MWh level, targeting industrial parks, data centers, microgrids and other high-power scenarios. Core requirements: high-voltage & high-current transmission, high protection rating, stable long-term operation under harsh outdoor conditions including extreme temperature & humidity, salt spray and UV radiation.
Overall, C&I energy storage systems feature 7×24 continuous operation, diverse complex scenarios, stringent safety standards and flexible rapid deployment. Therefore, connectors are far more than simple transmission components — they serve as core guarantees for system safety, efficiency and longevity.
Notably, as system power and capacity expand, heat dissipation becomes a decisive factor for system stability. Air cooling, liquid cooling and immersion cooling have become mainstream thermal management solutions with distinct structural differences, creating differentiated demands for connector adaptability. DEGSON provides tailored connector solutions matching all three cooling technologies.
(2) Characteristics of C&I Energy Storage with Different Cooling Modes & Corresponding Connector Requirements
Cooling systems act as the temperature control backbone for stable energy storage operation. Air, liquid and immersion cooling fit different power ranges, and their structural features define core connector criteria for protection, temperature resistance and installation. DEGSON connectors achieve synchronized matching between heat dissipation and connection performance.
Air-Cooled Energy Storage Systems
The dominant cooling solution for current C&I storage, divided into natural air cooling and forced air cooling.
• Features: Simple structure, controllable cost, easy maintenance; applicable to 10kW–1MW small & medium distributed storage and small park systems, mostly installed indoors or semi-outdoors with mild ambient conditions, yet exposed to dust and minor moisture.
• Connector demands: Easy maintenance + basic protection. Miniaturized, tool-free quick plugging for module assembly and post-operation inspection; minimum IP65 protection against dust and light water splashing; operating temperature range -40℃~105℃, ultra-low contact resistance to avoid cumulative heat with air cooling systems.
• DEGSON Matching Advantages: Compact form factor, tool-free plug-and-play, IP67 protection and wide temperature range minimize extra heat generation and coordinate with air cooling. Mating cycles exceed 10,000 times to cut maintenance frequency.
Liquid-Cooled Energy Storage Systems
Centered on water cooling, split into indirect and direct liquid cooling.
• Features: Outstanding heat dissipation efficiency, precise temperature control (temperature deviation ±2℃), ideal for medium & high-power systems above 1MW such as large container storage and data center energy storage, effectively resolving heat challenges for high-density power designs. However, complex pipelines carry leakage risks, requiring superior equipment tightness.
• Connector demands: High sealing protection, corrosion resistance, leakage prevention. IP67+ rating to block coolant (water, antifreeze) and avoid short circuits caused by leakage; resistant to coolant corrosion, operating temperature -40℃~120℃; robust anti-loosening structures fitting compact liquid cooling layouts, supporting high-voltage high-current transmission.
• DEGSON Matching Advantages: Special liquid-cooling connectors with fully sealed IP67 housings made of corrosion-resistant flame-retardant materials, supporting 50A–600A current and 1500VDC high voltage. Compact size adapts to cramped liquid cooling cabinets; built-in secondary anti-loosening locks eliminate disconnection hazards from vibration.
Immersion-Cooled Energy Storage Systems
High-end thermal management solution with cells fully submerged in insulating coolant liquid.
• Features: Uniform heat dissipation and maximum safety, effectively suppressing thermal runaway; suitable for large centralized storage above 5MW including industrial park and grid-side energy storage. Drawbacks include high upfront investment and complicated maintenance, requiring extreme sealing and corrosion resistance for all components.
• Connector demands: Full sealing protection, chemical corrosion resistance, ultra-high reliability. IP68+ rating for complete liquid isolation, stable long-term submersion in insulating coolant, resistance to chemical erosion, stable low contact resistance with minimal heat generation, robust structure tolerating pressure and temperature fluctuations under liquid.

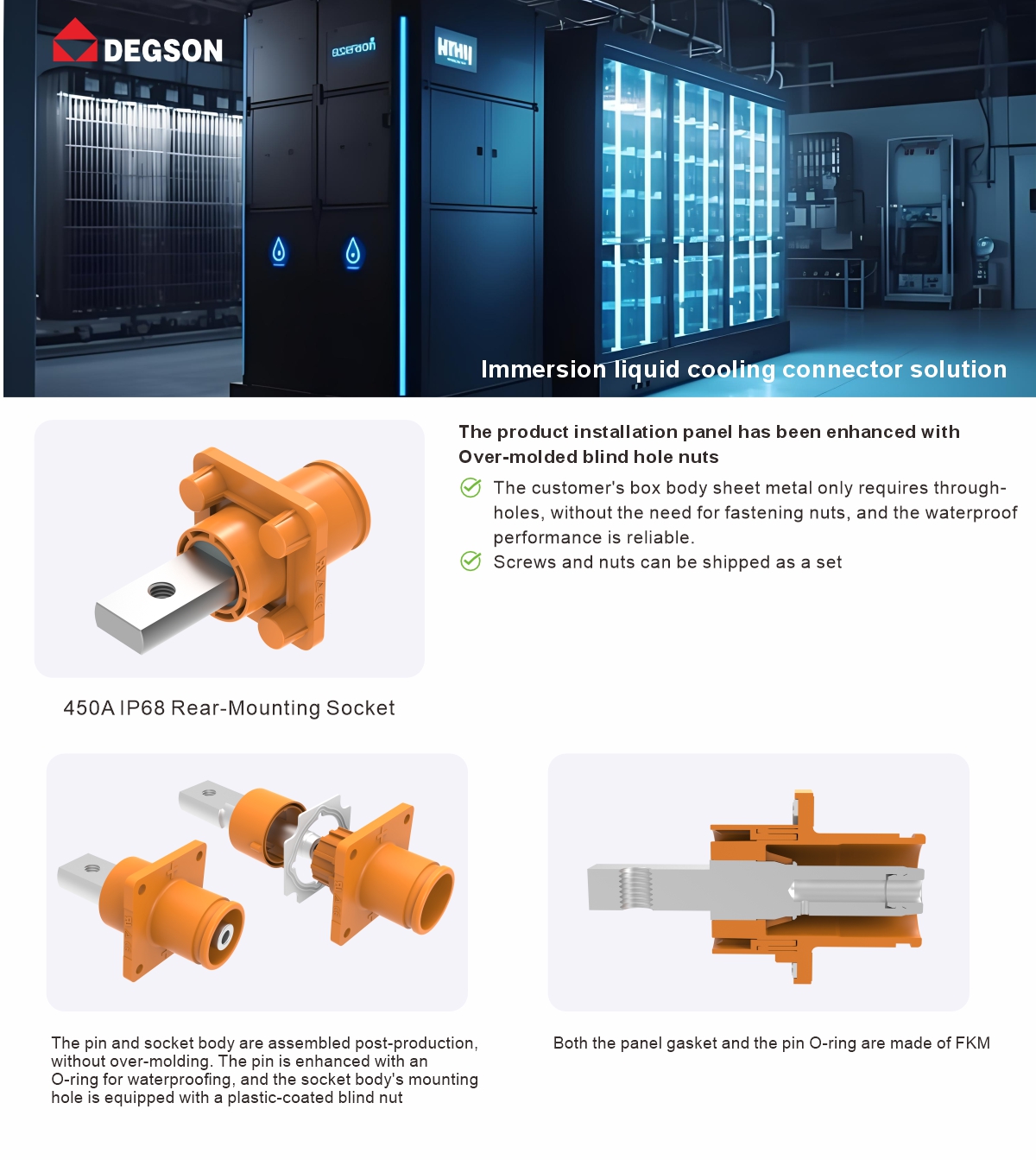

• DEGSON Matching Advantages: Dedicated fully sealed IP68 immersion connectors constructed from special chemical-resistant materials, leakage-free and corrosion-proof under long-term submersion. Stable high-voltage high-current transmission with contact resistance ≤0.5mΩ and negligible heat generation. Pass rigorous sealing tests to ensure trouble-free long-term operation for large centralized storage stations.
Market Layout of Three Cooling Technologies
Market share and installed capacity follow clear gradient distribution backed by industrial statistics:
1. Market Share Distribution
• Air cooling: Dominant at 70%–75%, widely adopted for small & medium power scenarios thanks to low cost and easy maintenance.
• Liquid cooling: Preferred for medium & high-power projects at 20%–25%; cold plate liquid cooling accounts for 91% of the liquid cooling market, while immersion cooling only takes 8% of liquid cooling segment, less than 5% of overall C&I storage market, limited to high-end large centralized projects.
2. Installed Capacity Distribution
Global C&I energy storage market size is projected to surpass 50GWh by 2025, with China accounting for over 30%.
• Air cooling capacity aligns with its market share, concentrated in 10kW–1MW distributed projects.
• Liquid cooling capacity focuses on systems above 1MW, reaching 30%–40% penetration in generation/grid-side C&I storage with steady growth momentum.
• Immersion cooling holds the smallest capacity share but serves large single projects above 5MW, still in market incubation phase with limited total deployment.
Industry Trend Forecast for Next 3–5 Years
1. Liquid cooling to become mainstream
• Power iteration matching: As C&I systems shift to high power and high density, widespread adoption of 500Ah+ large-capacity cells and CTP/CTC module-free integration drastically increases heat density. Air cooling efficiency falls short, while liquid cooling delivers 20% better heat dissipation and precise ±2℃ temperature control, slowing cell degradation. Case comparison: A 10MWh air-cooled park project recorded 10℃ cell temperature deviation and over 8% annual capacity attenuation after one year, versus only 3.2% attenuation for an equivalent liquid-cooled system.
• Improving cost competitiveness: Though initial investment is ~15% higher than air cooling, scaled production and domestic component supply drive liquid cooling cost down. Extra upfront costs can be recovered within 3 years via reduced cell degradation and maintenance expenses, delivering superior long-term economic benefits.
• Policy & scenario incentives: Global Dual Carbon targets push industrial parks and data centers to demand higher safety and efficiency. Miniaturized liquid cooling cabinets expand applicable scenarios, projected to exceed 60% market penetration by 2028.
• Mature technology: Years of field verification optimize indirect & direct liquid cooling solutions, resolving pipeline leakage pain points and boosting reliability for mass deployment.
2. Air cooling market repositioning
Air cooling will not exit the market but focus on sub-1MW small-scale scenarios including small industrial parks and distributed PV supporting storage, retaining market share via simple structure, low cost and easy maintenance. Future air cooling systems will trend toward miniaturization and low power consumption, continuously matched by DEGSON’s compact tool-free connectors.
3. Immersion cooling development outlook
Immersion cooling with supreme heat dissipation and safety will target high-end large-scale scenarios above 5MW such as grid-side storage and high-energy-consuming industrial parks. Restricted by high upfront cost, complex maintenance and extreme component requirements (IP68 full sealing, chemical resistance), it will remain a niche segment within 5–10 years, accounting for less than 10% of the C&I storage market.
Regardless of thermal management iteration, DEGSON has pre-developed full-adaptive connector portfolios: IP67 sealed corrosion-resistant high-current connectors for mainstream liquid cooling; miniaturized low-loss connectors for air-cooled subdivisions; IP68 dedicated fully sealed connectors for long-term stable submersion in high-end immersion cooling systems, delivering reliable connection support across all cooling technologies.
(3) Five Non-Negotiable Core Connector Requirements for C&I Energy Storage
1. High Voltage, High Current & Low Loss
Compatible with 1500VDC / 1000VAC high-voltage platforms, sustaining continuous 50–600A current transmission with ultra-low contact resistance and minimal heat generation to cut energy loss and maximize overall system efficiency for long-running high-power storage.
2. Ultimate Safety Protection
Integrated anti-misplug, touch-proof, anti-loosening, short-circuit and arc-suppression designs paired with secondary locking and reverse polarity prevention to eliminate risks from misconnection. Flame-retardant and high-temperature resistant construction mitigates thermal runaway at source.
3. Full Environmental Tolerance
Minimum IP67 protection rating, operating temperature range -40℃~120℃, superior resistance to salt spray, UV radiation, chemical corrosion and vibration, adapting to indoor machine rooms, outdoor containers, high-altitude plateaus and other harsh industrial environments.
4. Long Mechanical Service Life & Easy O&M
Mating cycles ≥10,000 times, robust impact-resistant structure with miniaturized lightweight tool-free quick plugging to simplify wiring and cut long-term maintenance costs, matching fast deployment demands of modular energy storage systems.
5. Compliance & Compatibility
Certified to international standards including UL4128, TUV 2PfG2740, universally compatible with mainstream cells, PCS and combiner cabinets from various brands. RoHS & REACH compliant to align with green development concepts.
02 Iteration Directions of C&I Energy Storage Systems, Synchronously Empowered by DEGSON Connectors
The C&I energy storage industry is shifting from cost competition to competition in technology, safety, intelligence and efficiency. Four clear iteration trends emerge for cells, capacity, safety and intelligence — DEGSON connectors pre-emptively innovate to match upgrading demands, enabling synchronized connection advancement alongside system upgrades.
(1) Cell Iteration: High Safety & High Integration, Precisely Matched by DEGSON
C&I storage cells are evolving from conventional lithium cells to mainstream 500Ah+ large-capacity formats, with widespread adoption of CTP/CTC module-free integration and gradual commercialization of solid-state batteries, centered on higher energy density, consistency and safety. This requires fewer connection points and superior component adaptability.
DEGSON delivers a full product range from 50A to 600A including single-core high-current, flexible copper busbar and stacking connectors, perfectly fitting large-capacity cells and high-density CTP PACK designs. Copper alloy contacts with precision gold/silver plating achieve contact resistance ≤0.5mΩ to minimize energy loss. Patented compact structure fits cramped module-free layouts, reducing connection nodes and boosting system consistency and stability, fully compatible with lithium iron phosphate, sodium-ion and other new cell chemistries to unlock full cell performance potential.
(2) Capacity Iteration: High Density & Expandability, Flexibly Adapted by DEGSON
Capacity iteration focuses on high energy density and flexible scalable expansion. Single cabinet capacity rises above 500kWh with modular Lego-style expansion and high-voltage series string architectures becoming mainstream, demanding connectors capable of high-voltage high-current transmission and flexible capacity expansion.
DEGSON connectors support 1500VDC high-voltage platforms with rated currents spanning 50A–600A. The ESP series covers 50A–450A to match high-voltage series strings, cutting power conversion loss and lifting system efficiency by 4%–6%. 360° rotatable housings accommodate diverse wiring layouts, combined with quick plugging and anti-misplug keyway designs to simplify modular expansion and on-site assembly. Efficiently adaptable for flexible small distributed storage combinations and centralized large containerized storage deployment to accelerate project rollout.
(3) Safety Iteration: Active Early Warning & Full-Range Isolation, DEGSON Builds Solid Safety Barriers
Safety standards advance from passive protection to active early warning and full-system isolation, raising stricter requirements across cell intrinsic safety and system fire protection. As critical energy transmission nodes, connectors form the first line of defense against thermal runaway.
DEGSON embeds safety into every product design: UL94 V-0 flame-retardant nylon housings with high impact resistance withstand extreme heat and open flame; integrated anti-misplug, touch-proof, anti-loosening and arc-suppression structures plus secondary locking prevent misconnection and accidental disengagement. Certified to UL4128 and TUV 2PfG2740 for international-grade safety performance. IP67 protection tolerates high-pressure water jet cleaning with stable operation from -40℃ to 125℃, resisting dust, moisture and low temperature in harsh outdoor environments. Selected models integrate short-circuit fuse protection to rapidly cut circuits under extreme conditions and reinforce system safety.
(4) Intelligent Iteration: AI Control & Digital Twin, DEGSON Enables Smart O&M
Intelligent transformation shifts operation from passive monitoring to AI control and digital twin management. Real-time cell and connection status monitoring enables remote maintenance and hazard pre-warning, requiring connectors with data acquisition & transmission functions to interface with EMS management systems.
Keeping pace with intelligent trends, DEGSON energy storage connectors reserve sensor ports for real-time collection of temperature and other key parameters, seamlessly integrating with AI operation platforms and digital twin systems to realize full-lifecycle traceability and remote monitoring of connection status, pre-alarming contact degradation and overheating hazards to cut maintenance costs and downtime risks. Waterproof communication connectors available in 8-core, 12-core and 24-core specifications with IP67 rating deliver stable control signal transmission. Supported by standardized precision crimping technology for firm wiring, low temperature rise and consistent performance, they provide reliable data support for intelligent storage regulation and unmanned autonomous operation.
03 DEGSON Energy Storage Connectors: Full-Scenario Solutions Covering All C&I Storage Demands

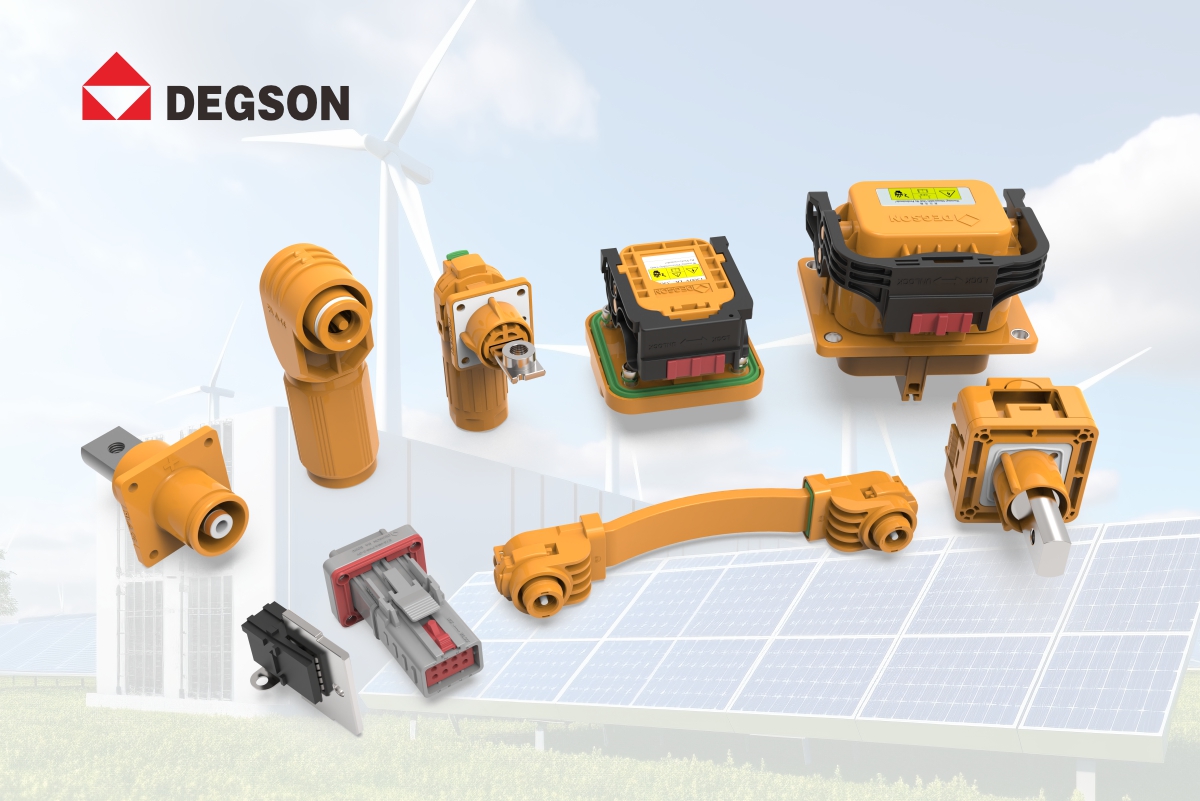

Drawing on years of R&D and manufacturing experience in industrial connectors, DEGSON addresses core pain points of C&I energy storage to develop a full-range customizable connector portfolio, meeting current system requirements while anticipating future iteration trends with four core competitive strengths:
Full-Range Coverage for Diverse Scenarios

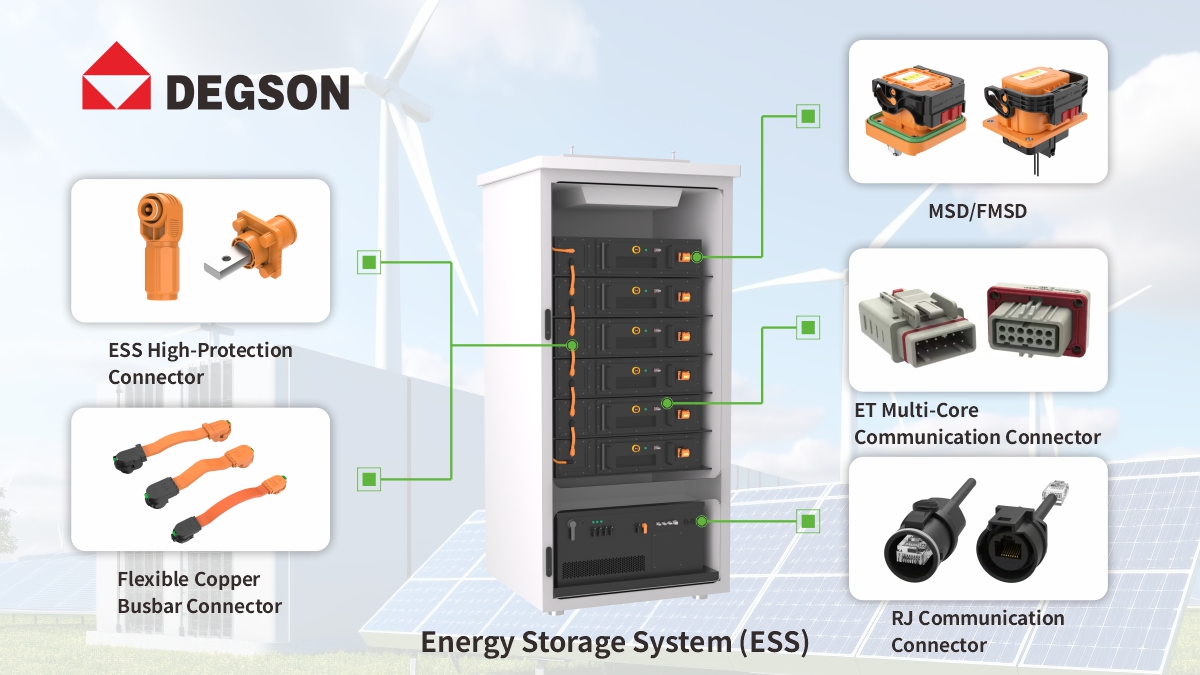

From 50A small distributed storage to 600A large containerized storage, covering power and signal communication links. DEGSON supplies single-core high-current, flexible copper busbar, stacking and waterproof communication connectors including the flagship ESP series, compatible with DC-coupled, AC-coupled and containerized C&I storage systems. Custom development services deliver special variants such as dual plugs and dual sockets for one-stop matching.
Ultra-Reliable Performance for Long-Term Operation
Premium copper alloy contacts and flame-retardant insulation manufactured under strict quality control standards deliver mating cycles over 10,000 times, stable low contact resistance with minimal heat generation and oxidation, far exceeding industry average service life. Certified by UL, TUV, CE and other global authorities.
High Protection Against Harsh Working Conditions
IP67 protection paired with wide temperature range withstands -40℃~125℃ extreme temperatures, salt spray, UV radiation and vibration. Maintains stable connection for outdoor containers, plateau PV storage and humid/dusty industrial workshops, with multi-layer electric shock and short-circuit protection eliminating connection failures induced by environmental factors.
Compliant & Eco-Friendly Aligned with Green Trends
RoHS & REACH compliant halogen-free low-pollution materials match the low-carbon development vision of C&I energy storage. Strictly compliant with UL4128 and other international standards, highly compatible with mainstream cell systems including CATL and BYD for seamless integration into existing storage projects, demonstrating premium domestic connector quality and environmental responsibility.
04 Conclusion: Forge a New Future for Energy Storage Through Connection Power
Every technological iteration of C&I energy storage raises higher standards for connection reliability and adaptability; every project deployment relies on robust professional connector support.
Centered on customer demands and driven by technological innovation, DEGSON energy storage connectors fully align with the characteristics and iteration trends of C&I energy storage systems. From cells to complete systems, capacity expansion to safety control, hardware performance to intelligent operation, our full product lineup and full-scenario solutions deliver efficient, safe, reliable and flexible connection guarantees for C&I storage.
Moving forward, DEGSON will continue deepening its footprint in the energy storage sector, keeping pace with industrial upgrades to optimize product performance and innovate connection technologies. We will deliver superior energy storage connector solutions to fuel high-quality development of C&I energy storage, help enterprises cut power costs and boost energy efficiency, and collaborate with partners to build a new green energy future.
