As balcony energy storage evolves from a popular household green solution in Europe to a new choice for domestic families in China, most people focus on the power generation efficiency of photovoltaic panels and the capacity of energy storage batteries, yet overlook a core component that determines system safety, energy efficiency and service life — photovoltaic & energy storage connectors. Serving as the "neural hub" for electric current transmission, they act as a critical bridge linking PV panels, energy storage batteries and inverters, as well as the first line of defense protecting household electricity safety.
With decades of expertise in industrial connectors, DEGSON addresses exclusive pain points of balcony energy storage scenarios by developing full-chain, highly reliable connection solutions. Powered by cutting-edge connection technology, we deliver reliable support for green energy lifestyles of thousands of households.
Connection Challenges of Balcony Energy Storage: More Than a Fitting, It’s the Lifeline

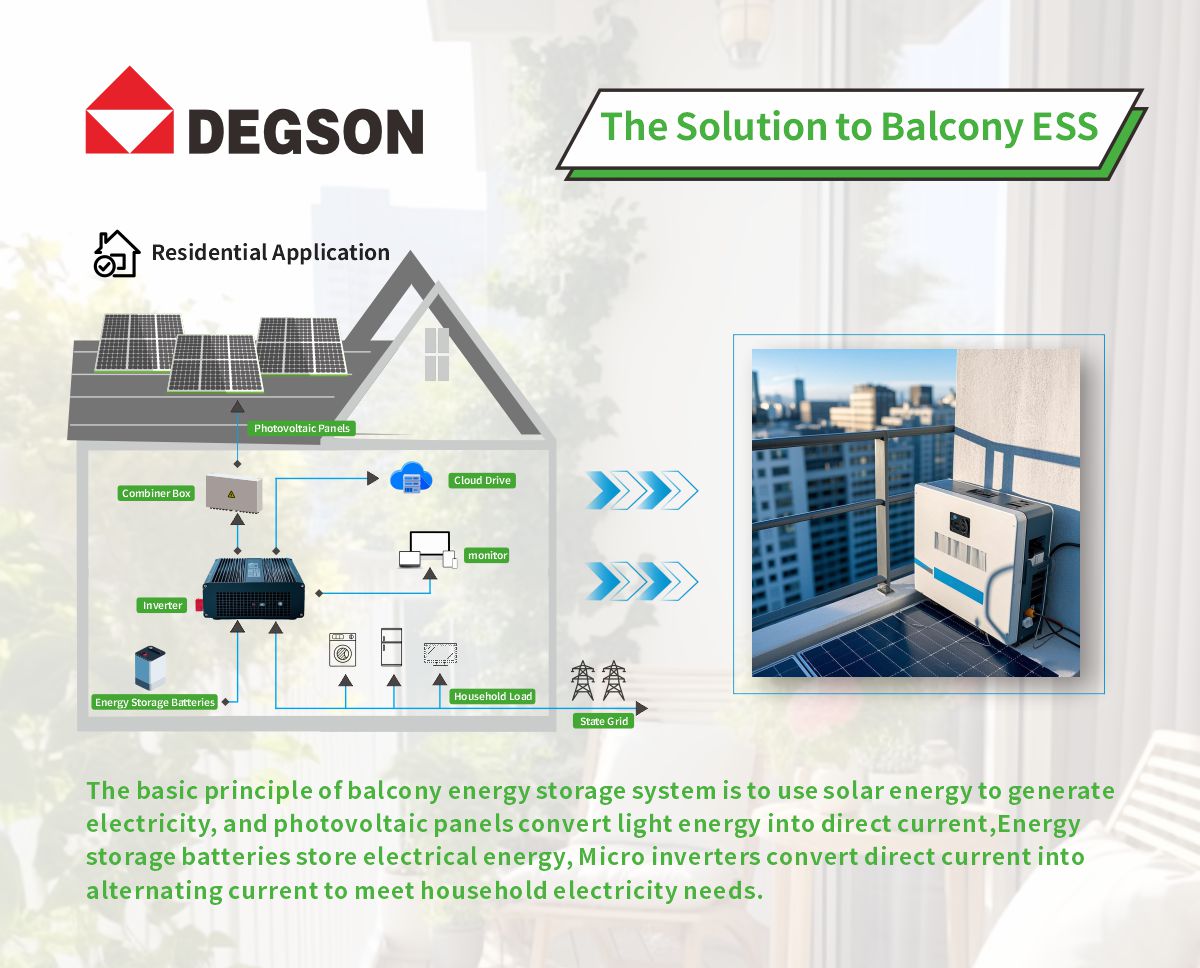

A balcony energy storage system consists of PV modules, energy storage batteries and micro-inverters. It converts light energy into direct current for storage, then inverts it into alternating current for household use. This unique residential scenario imposes far stricter requirements on connectors than general industrial applications:
1. Safety First: Installed directly inside residential buildings, connectors must fully prevent electric shock, electric arc and flame spread — any defect may trigger household safety hazards.
2. Harsh Operating Environment: Exposed to wind, rain, intense humidity and salt spray. Temperatures can soar above 60°C under summer sunlight and plummet to subzero in winter. Ordinary connectors tend to age and rust, resulting in poor contact.
3. High Sensitivity to Energy Efficiency: Contact resistance directly causes power loss during transmission. Every extra milliohm will extend the payback period for end users.
4. Long-Term Lifespan Stability: Systems are designed for a 10–15 year service life. Connectors must match this lifespan to avoid costly after-sales failures mid-operation.
DEGSON Balcony Energy Storage Connection Solutions: Full-Chain Coverage to Secure Every Watt-Hour of Power
Based in Ningbo, DEGSON has built a full matrix of connectors covering the entire chain: PV panels → energy storage batteries → inverters → household distribution boxes, precisely matching every key node of balcony energy storage systems.
1. Core Link Connection Solutions
• PCS Connection Cable: The "energy channel" between PV modules and energy storage systems, efficiently transmitting DC power generated by PV panels to storage batteries.
• Parallel Battery Cable: Enables parallel expansion of multiple battery packs, balancing current between batteries to boost overall system capacity and stability.
2. Core Product Portfolio Customized for Balcony Energy Storage

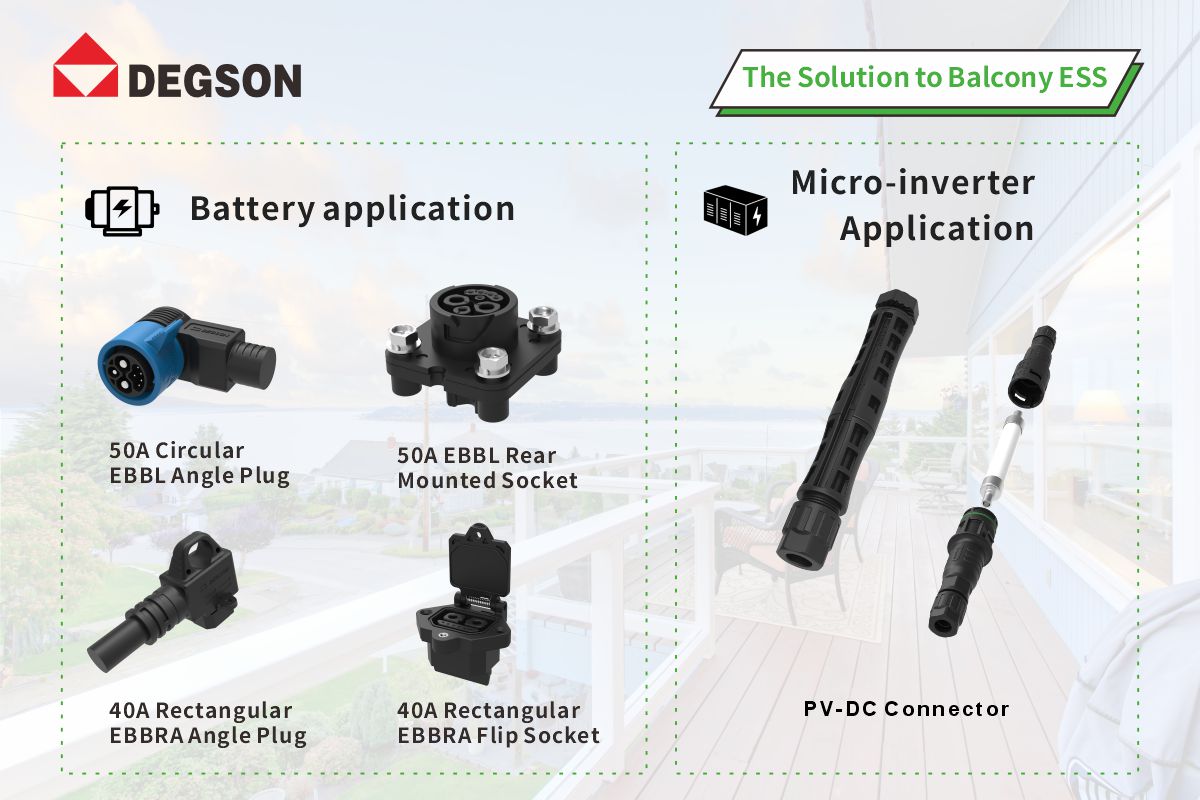

Four flagship connectors form the backbone of DEGSON’s solutions and are preferred by leading energy storage brands worldwide.
| Model | Product Name | Core Advantages | Key Specifications |
| EEBL | Angled Plug & Socket | High protection rating, wide temperature resistance, ideal for PV module side connections | 600V / 50A, IP67 protection, operating temperature: -40℃ ~ +125℃ |
| EEBRA | Straight Plug & Socket | Anti-misplug design, high conductivity, compatible with batteries and inverters | 600V / 50A, 3,000 mating cycles, UL94 V-0 flame retardant grade |
Four Core Product Advantages
• Ultimate Safety: Full enclosed touch-proof design with IP67 dust and water resistance. Core components adopt UL94 V-0 highest flame retardant material to eliminate leakage and fire risks at the source.
• Low Energy Loss & High Efficiency: High-conductivity alloy materials paired with optimized contact structures control contact resistance at milliohm level, minimizing power transmission loss and improving overall system efficiency.
• Wide Environmental Adaptability: Passed wide temperature testing (-40℃ ~ +125℃) and 1,000-hour salt spray testing. Resists intense sunlight, low temperatures and coastal salt corrosion for long-term stable operation.
• Fast & Easy Installation: Tool-free quick-lock design enables one-step locking, greatly boosting production line assembly and on-site installation efficiency while cutting labor costs.
PV-DC Standard DC Connectors
Model List
• Board-mount types:
PV-DC-MF-PSC-01P-40A-8-00Z(H)
PV-DC-FM-PSC-01P-40A-8-00Z(H)
PV-DC-MF-PSC-01P-40A-8-01Z(H)
PV-DC-FM-PSC-01P-40A-8-02Z(H)
• Cable-mount types:
PV-DC-FM-CSC-01P-40A-8-00Z(H)
PV-DC-MF-CSC-01P-40A-8-00Z(H)
PV-DC-MF-CSC-01P-40A-8-01Z(H)
PV-DC-FM-CSC-01P-40A-8-02Z(H)
Specifications
| Parameter | Specification |
| Rated Current | 40A |
| Protection Class | IP68 |
| Applicable Wire Cross-section | 2.5–6mm² |
| Operating Temperature | -40℃ ~ 85℃ |
Product Features
1. Touch-proof design: Simple mating; disassembly requires dedicated tools to prevent direct human contact with live conductive parts for enhanced safety.
2. Ergonomic structure: Nut-and-bolt locking design delivers comfortable, labor-saving assembly.
3. Superior protection: IP68 dust and water resistance, perfectly suited for outdoor balcony environments.
PV-DC Fuse-Type DC Connectors
Model List
• Female end: PV-DCFU-FM-PSC-01P-XXA-8-XXZ (H)
• Male end: PV-DCFU-MF-PSC-01P-XXA-8-XXZ (H)
Specifications
| Parameter | Details |
| Application Scenarios | PV inverters, DC links of balcony energy storage |
| Rated Voltage | 1500V |
| Optional Fuse Ratings | 20A / 25A / 30A |
| Applicable Cable Size | 4–6mm² |
| Protection Class | IP68 (mated state) |
| Operating Temperature | -40℃ ~ +125℃ |
Core Highlights
Complete range of fuse options to match energy storage systems of different power levels; IP68 high protection prevents water ingress and aging during long-term outdoor deployment.
Beyond Products: Full-Lifecycle Services as Your Reliable Partner
More than supplying premium connectors, DEGSON leverages decades of industry experience to deliver comprehensive technical support and customized services:
1. Custom R&D: Develop exclusive connection solutions tailored to clients’ differentiated system designs. Fast sampling within 35 days to help partners seize market opportunities.
2. Full-Chain Compatibility: Product portfolio covers DC, AC and signal connections, fully compatible with mainstream PV modules, storage batteries and micro-inverters for one-stop procurement.
3. Rigorous Quality Control: Fully automated production lines and end-to-end quality inspection systems ensure all connectors comply with international authoritative certifications including TÜV and UL for consistent, stable quality.
Closing Remarks
In the booming balcony energy storage industry, true competitiveness lies in overlooked details. DEGSON firmly believes connectors are never trivial fittings, but the "invisible heart" securing household energy safety.
We will continue to deepen connection technology research, provide ultra-reliable products and services, and cooperate with industry partners to drive high-quality development of the balcony energy storage sector. Let every ray of sunlight power household life safely and efficiently.
