DEGSON Product Highlight: 450A Energy Storage Connectors to Solve High-Current Connection Challenges
To address prevailing industry pain points, DEGSON launches the 450A single-core high-current series, consisting of 450A single-core high-current connectors and 450A flexible busbar connectors. They deliver safe and reliable connection solutions for the 3.0 era of energy storage cells, redefining energy transmission benchmarks for energy storage with Safety, Efficiency & Reliability.

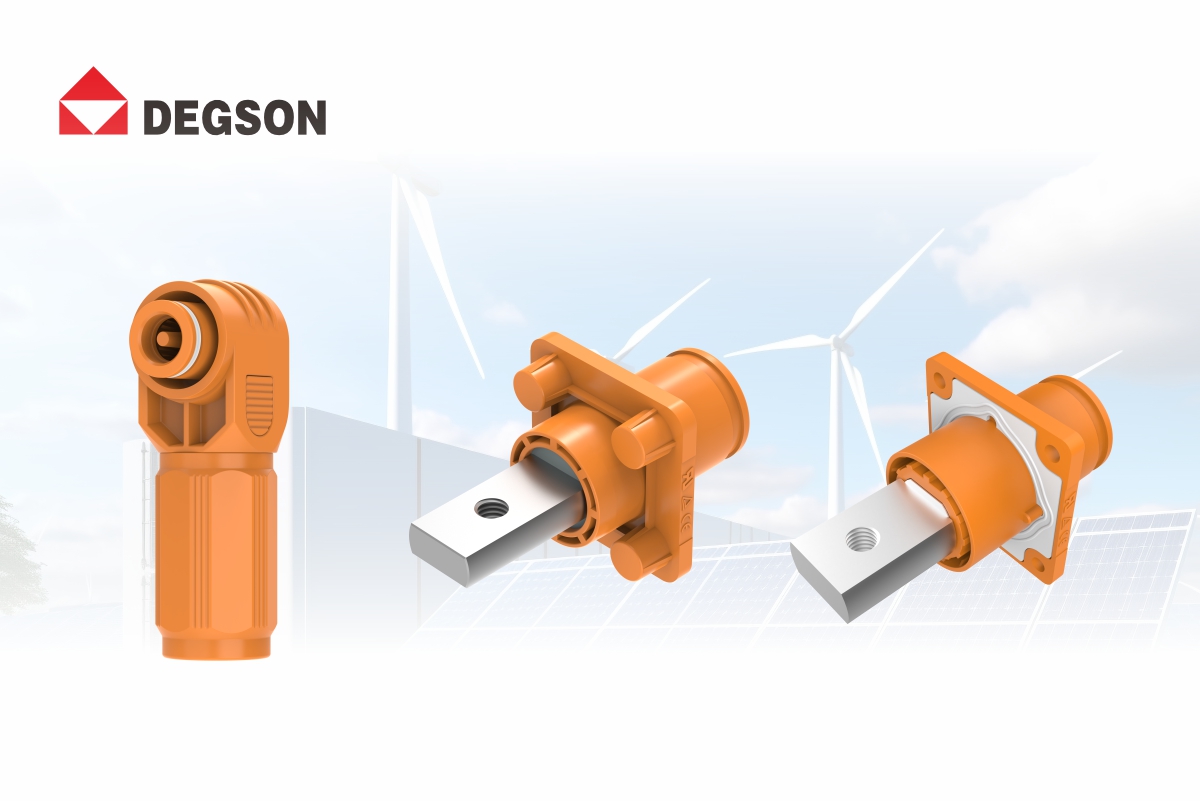

450A Single-Core High-Current Connectors: Perfect Integration of High Protection & Superior Reliability
Designed in compliance with UL 4128 and TUV 2PfG 2740 standards, the 450A single-core energy storage connectors are applicable to energy storage battery packs and PCS units.
Sockets support two mounting types: front lock and rear lock for diversified solutions; rear-lock sockets achieve IP68 high ingress protection.
• Ultra-high current capacity: Rated current 450A, rated DC voltage 1500V, perfectly matching high-power charging & discharging demands of large-cell systems;
• Premium insulation performance: Insulation resistance ＞5000MΩ, contact resistance ≤0.5mΩ with sufficient electrical safety margin;
• Complete certification credentials: Compliant with UL 4128 and certified by TUV for traceable quality;
• Two socket options available: Rear-panel mount sockets equipped with plastic-coated blind-hole nuts for easier installation and stable waterproof performance.

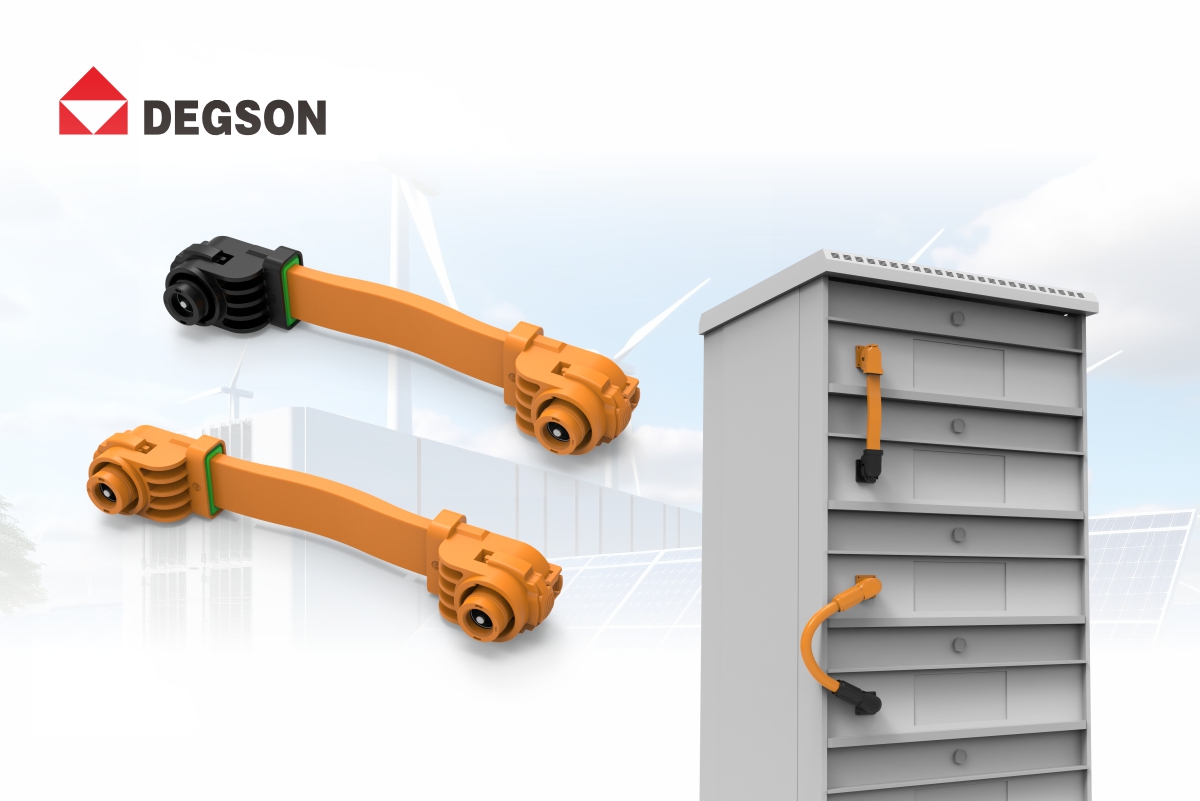

450A Flexible Busbar Connectors: Ideal for Space-Constrained Scenarios
The 450A flexible busbars are mainly deployed in industrial & commercial energy storage and large container energy storage systems. With a maximum current rating of 450A and IP67 protection rating, they ensure stable operation under severe high/low temperature environments. Dual TUV and UL certifications meet global export requirements.
• Customizable layout for complex wiring: Cable length and routing can be tailored to fit cramped, hard-to-wire PACK interiors, delivering more efficient and tidy internal layout;
• Outstanding electrical performance: Rated voltage 1500V, contact resistance ≤0.5mΩ to minimize energy loss and temperature rise under high-current transmission;
• Robust environmental resistance: IP67 ingress protection, operating temperature range -40℃~+125℃, UL94 V-0 flame retardant housing to withstand harsh outdoor conditions;
• Full set of export certifications: TUV and UL certified to support compliance for global energy storage equipment shipments.
Closing Remarks
In the era of large-format cells, connectors have never been more critical. They are not merely physical interfaces, but guardians of energy flow.
With two flagship products — the 450A single-core high-current connectors and 450A flexible busbar connectors, DEGSON collaborates with industrial chain partners to resolve connection bottlenecks in large-cell applications and build a solid safety foundation for energy storage systems.
Choose DEGSON for a more stable and efficient energy storage future.
