DEGSON DIN Rail Terminal Blocks Application Solution for Wind Power Control Cabinets
DEGSON DIN Rail Terminal Blocks Application Solution for Wind Power Control Cabinets
As the core basic component for electrical connection inside wind power control cabinets, terminal block selection directly determines the operational safety, stability and maintenance efficiency of wind turbine units. With the wind power industry developing towards high power capacity, offshore deployment and intelligent upgrading, wind turbines continuously operate under harsh outdoor conditions including extreme temperature fluctuations, strong vibration, high humidity and heavy dust. This imposes stricter requirements on DEGSON terminal blocks in terms of protection performance, seismic resistance, weather resistance and wiring reliability.
Modern wind turbines have entered the era of digital and intelligent control. Control cabinets integrate multiple core modules such as pitch control, yaw control, converter regulation and safety monitoring, featuring compact layout and severe operating conditions. Adhering to German craftsmanship and boasting a comprehensive product portfolio, DEGSON DIN rail terminal blocks deliver stable power and control signal transmission. They are critical to securing electrical connections in wind power cabinets and streamlining installation and maintenance procedures. The products are widely adopted by major wind power operators including CGN, China Energy Investment Corporation and Three Gorges New Energy. Certified by UL, CE and other international authoritative standards, DEGSON builds a solid safety barrier for electrical connections of wind power systems.
Application Scenarios & Matching DEGSON Solutions
1. Main Power and Converter Circuits
DEGSON high-current DIN rail terminal blocks and pluggable high-current connectors are adopted, primarily the PC16 and PC35 series. They are tailored for high and low voltage circuits of wind power converters, capable of withstanding high transient currents and accommodating wire cross-sections ranging from 1.5 mm² to 95 mm². Featuring low contact resistance, high temperature resistance and anti-electrocorrosion properties, they effectively prevent overheating and burnout caused by high current surges during converter startup and power adjustment. Safety designs such as CT open-circuit protection greatly enhance circuit reliability and simplify cabinet wiring layout. The PC16 terminal block, with outstanding electrical conductivity, is extensively used for wiring in main power loops of wind turbines.
2. Pitch and Yaw Control Circuits
DEGSON spring-cage and push-in compact DIN rail terminals (DS series including DS6 and DSN trigger-type push-in spring connectors) are selected. Benefiting from self-locking structures and superior anti-vibration performance, they adapt to frequent startup-stop cycles and continuous mechanical vibration in pitch and yaw systems. With strong anti-interference capacity, they reliably transmit DC24V control signals, angle feedback signals and position sensor signals without loose connections induced by vibration, ensuring precise pitch and yaw movement under severe outdoor vibration conditions. The Push-IN connection technology of DS series boosts wiring efficiency by 50% compared with traditional screw terminals, while DSN series supports tool-free fast wiring to cut on-site installation and maintenance time significantly.
3. Monitoring and Safety Circuits
DEGSON multi-purpose DIN rail terminals and modular distribution blocks (PC2.5B terminal blocks and DPD modular distribution boxes) with dustproof and anti-corrosion structures are deployed for wiring in nacelles and hubs filled with dust and moisture. They cover signal circuits for wind speed, rotational speed, temperature and vibration monitoring, as well as safety loops for emergency stop and lightning protection. Multi-channel signal branching and flexible expansion are supported to improve wiring stability and construction convenience while lowering long-term maintenance costs. The PC2.5B terminal block fits fine gauge wires from 0.2 mm² to 2.5 mm², perfectly matching monitoring loop requirements.
Key Selection Criteria for DEGSON Wind Power-Dedicated Terminal Blocks
1. Mechanical Performance: Anti-Vibration and Shock Resistance
Wind power cabinets endure continuous low-frequency vibration from unit operation and gust impact. DEGSON prioritizes spring-cage and push-in self-locking terminals with anti-loosening structures, mainly the DS and STB series. These products automatically compensate for vibration deformation to avoid screw loosening and poor contact. Their consistent clamping force outperforms ordinary terminals, eliminating signal interruption and equipment faults caused by loose fixation under severe wind farm vibration. The STB series provides dual connection feedback after wiring to guarantee stable contact under vibrating environments.
2. Weather Resistance and Protection
Targeting outdoor wind farm conditions with temperatures ranging from -40℃ to 85℃, high humidity, heavy dust and salt spray corrosion, DEGSON terminal blocks are manufactured with weather-resistant engineering plastic and high-grade metal raw materials. Typical models include DDB distribution boxes and PC16 terminal blocks. The plastic housing complies strictly with UL94 V-0 flammability grade. DDB distribution boxes feature excellent anti-corrosion and oxidation resistance for long-term stable operation. All PC series products hold CE and UL certifications to adapt to harsh outdoor working conditions.
3. Conductive Performance and Safety Margin
Wind power systems operate under high power and heavy current loads. DEGSON PC16 and PC35 series adopt high-purity copper conductors with precision machining and surface treatment to achieve low contact resistance and stable electrical conductivity, reducing energy loss and overheating risks. Sufficient voltage and current safety margins together with overvoltage isolation protection are reserved to satisfy long-term high-load operation and eliminate hidden dangers arising from poor contact or insulation failure. The PC series offers excellent rated performance to handle heavy current transmission in wind power circuits.
4. Marking and Maintainability
Wind turbines incur high maintenance costs and difficulties. DEGSON provides printable marker strips compatible with DC, DS and STB series. The labels are scratch-resistant, anti-aging and weatherproof, allowing maintenance staff to quickly locate faults outdoors and shorten downtime. Humanized structural designs further optimize servicing: DS series is equipped with tool-free wire release buttons; DC series has reserved test ports and spacious marking areas to achieve neat and standardized cabinet wiring.
Common Wiring Faults & DEGSON Preventive Measures
With DEGSON DIN rail terminal blocks and standardized installation & periodic maintenance, typical wiring failures inside wind power control cabinets can be effectively avoided to secure long-term stable operation of wind turbines.
1.Poor Contact & Thermal Burnout
The high-purity copper conductors, optimized clamping structure and anti-electrocorrosion treatment of DEGSON PC series keep contact resistance minimal and resist vibration and corrosion. High-temperature resistance prevents burnout under heavy current. The self-locking structure of STB series further stabilizes connection and reduces contact failure risks.
2.Faded Markings & Wrong Wiring
Weatherproof DEGSON marker strips withstand extreme temperature and ultraviolet radiation outdoors, avoiding blurred or fallen-off handwritten labels. Standardized wiring specifications minimize misconnection and simplify troubleshooting.
3.Loose Plug-in & Broken Clips
DS and STB series are fitted with mechanical coding and locking hooks to prevent accidental plugging and unplugging. Loose disconnection and broken plastic clips caused by frequent maintenance or sustained vibration are avoided to prevent unexpected system shutdowns.
4.Plastic Aging & Insulation Deterioration
DS, STB, DC and BS series adopt UV-stabilized, V-0 flame-retardant plastic with outstanding anti-aging and anti-corrosion properties. Plastic cracking and insulation failure under outdoor harsh environments are prevented to rule out short-circuit and electric leakage hazards, extend service life and lower replacement expenses. All models meet wind farm outdoor weather resistance standards.
Future Development Trend & DEGSON Strategic Layout
Driven by the shift towards high-power turbines, intelligent upgrades, offshore wind farms and wind power IoT, DEGSON DIN rail terminal blocks will evolve toward integration, intelligence and modularization.
Based on the existing UK, XTV and XPC series, DEGSON will develop intelligent terminal blocks built with LED status indicators, current monitoring, temperature feedback and fault alarming functions. Real-time status visualization will support predictive maintenance for wind turbines. Modular structure will be further optimized to expand the capacity of DPD distribution boxes, enabling quick expansion and flexible networking for highly integrated high-power units. Combined with digital technology, wiring data management will be realized to further improve system reliability and maintenance efficiency. DEGSON will continue to facilitate the low-carbon transition of wind power and high-quality development of new energy industries, demonstrating technological foresight and innovative strengths in electrical connection solutions.
Conclusion

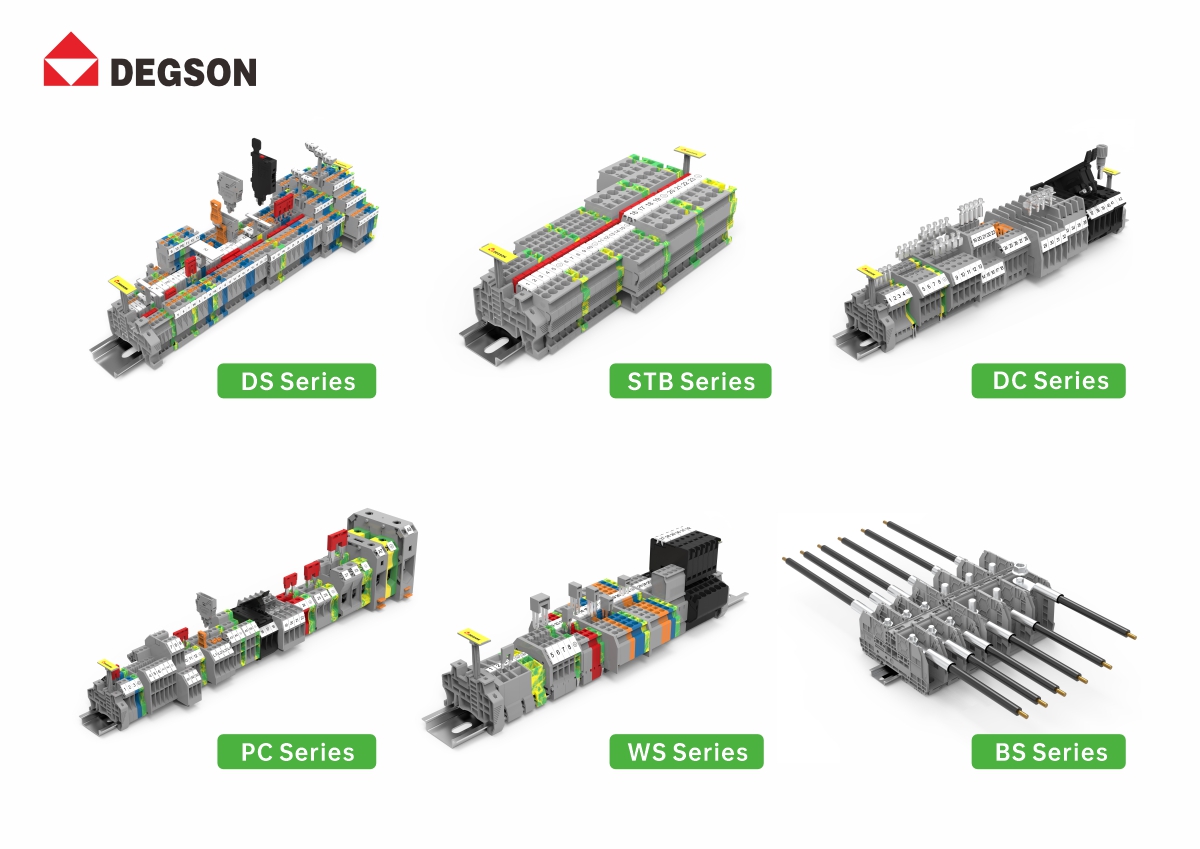

DEGSON DIN rail terminal blocks (DS, STB, PC, BS series, etc.) have evolved beyond basic connection components. With exceptional anti-vibration performance, weather resistance, high reliability and compact layout, they fully match the harsh operating conditions of wind power control cabinets and serve as foundational parts safeguarding safe, stable and efficient operation of wind turbines.
Backed by profound technical accumulation, strict quality control and comprehensive product lines, flagship models including PC16, PC2.5, DS6 and STB terminal blocks plus distribution boxes can fully satisfy current wind power application demands while keeping pace with industrial upgrades. DEGSON delivers full-lifecycle electrical connection solutions to support large-scale and intelligent development of wind power projects. As a trusted partner for wind power enterprises, DEGSON consolidates its leading position as a global technology benchmark in industrial electrical connections.
